Metallurgiske mikroskop

      Her vises alle våre 32 XJM-modeller inkl XJM200DIC.

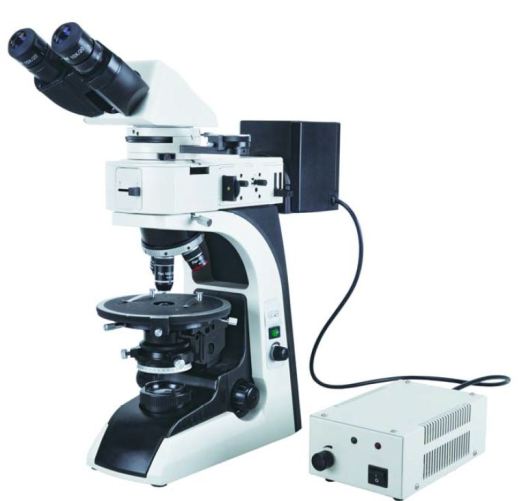

      Nederst på siden finner du en modell i BS-serien.
      Alle mikroskopene er med trinokularport for kamera.
      Alle priser er eks. MVA

XJM100 (4 modeller)



Priser XJM101: 16000,-  XJM102: 17300,-  XJM103: 19800,-   XJM104: 21200,-

The XJM100 series upright metallurgical microscope is capable of reflected and transmitted light enables application on both crystal and opaque samples.
The mature ICOS adopts in XJM100 series ensures the excellent optical clarity and contrast required by today's discerninmicroscopists while delivering an perfect cost-to-performance ratio.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare is also available for option.




    Specifications
    XJM101
    XJM102
    XJM103
    XJM104
    Optical System
    Infinity Optical System F=180mm
    Viewing Head
    Siedentopf binocular, inclined at 30°
    Interpupilary distance 50~75mm


    Siedentopf trinocular, inclined at 30°
    Interpupilary distance 50~75mm
    Light distribution: 0:100





    Eyepieces
    WF10X/20mm
    WF10X/18mm
    ●●
    ●●
    ●●
    ●●
    WF10X/18mm (Reticule 0.1mm)
    WF5X
    WF12.5X
    WF16X
    Objectives
    Plan Achromatic 4X/0.10 (S) WD=2.14mm
    Plan Achromatic 10X/0.25 (S) WD=2.14mm
    Plan Achromatic 20X/0.40 (S) WD=2.14mm
    Plan Achromatic 40X/0.65 (S) WD=0.45mm
    Plan Achromatic 100X/1.25 (S,O) WD=0.12mm
    LWD Plan Achromatic 20X/0.40 WD=8.35mm
    LWD Plan Achromatic 40X/0.65 WD=3.90mm
    LWD Plan Achromatic 50X/0.70 (S) WD=1.95mm
    LWD Plan Achromatic 80X/0.80 (S) WD=0.85mm
    Nosepiece
    Quintuple, inward
    Stage
    Double layers size: 190×140mm with Scale: 0.1mm
    Moving Range: 78×55mm
    Stage Plate
    Place the sample on the plate
    Polarizing Set
    Built In Polarizer and Analyzer
    Condenser
    Abbe Condenser NA=1.25 (with iris diaphragm)


    Collector
    Center adjusted, with field diaphragm Koehler Illumination,


     ●
    Focusing Unit
    Coaxial coarse and fine focusing knobs
    Filter
    Blue


    C-mount
    1X


    0.5X


    Illuminator
    12V 50W halogen lamp (Reflected Illumination)
    6V 20W halogen lamp (Transmitted Illumination)


       OPTIONAL        INCLUDED
     Pack: 1 carton. G.W.: 15.5KGS, 12KGS, Meas.: 75*36*45CM

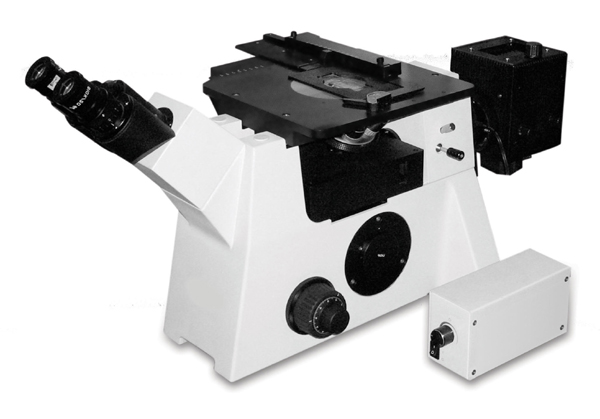

XJM 200 og 200DB


Priser:    XJM200 Kr. 24200,-        XJM200BD  Kr. 42000,-

 XJM200 Bright and Dark Inverted Microscope

XJM-200 Inverted metallurgical microscope is the first model in China which it equipped with Bright and Dark field microscope, with excellent infinity optical system, can achieve polarization, dark field image. Compact and steady body is supported with the shock resistance. The flash and ergonomic design is adopted in suitable and easier operation.


Parts
Specifications
XJM200
XJM200BD
Optical System
Infinite Plan Optical System F=200mm
Viewing Tube
Seidentopf trinocular head, interpupillary distance 53~75mm, 45° inclined, diopter adjustable.
Eyepiece
WF10X/20, High eye-point up to 21mm.
●●
WF10X/20mm with reticule

Nosepiece
Quintuple, Inward facing.
Objectives
Long working distance Plan Achromatic 5X/0.10  WD=26.12mm

Long working distance Plan Achromatic 10X/0.10  WD=20.20mm

Long working distance Plan Achromatic 20X/0.25  WD=8.80mm

Long working distance Plan Achromatic 40X/0.10  WD=3.68mm

Long working distance Plan Achromatic 50X/0.40  WD=3.68mm

Long working distance Plan Achromatic 60X/0.10  WD=3.18mm

Long working distance Plan Achromatic 80X/0.10  WD=1.28mm

Long working distance Plan Achromatic 100X/1.25(Dry)  WD=0.40mm

Long working distance Plan Achromatic BD5X/0.60  WD=9.70mm

Long working distance Plan Achromatic BD10X/0.60  WD=9.30mm

Long working distance Plan Achromatic BD20X/0.60  WD=7.23mm

Long working distance Plan Achromatic BD50X/0.60  WD=2.50mm

Long working distance Plan Achromatic BD40X/0.60  WD=3.00mm

Long working distance Plan Achromatic BD60X/0.60  WD=1.90mm

Long working distance Plan Achromatic BD80X/0.60  WD=0.80mm

Long working distance Plan Achromatic BD100X/0.75  WD=0.22mm

Stage
Fixed stage: 242×200mm, low-position co-axial flexible adjusting handle, moving range:30×30mm
Illumination
6V 30W halogen lamp

12V 50W halogen lamp

Filter
Blue filter (Φ26)
Green filter (Φ26)
Yellow filter (Φ26)
Attaches
Simply Polarizer and Analyzer
C-Mount
1X
0.5X
Digital Camera Joint
(Please advice your digital camera model in advance)

Optional

Material analysis software
 ○
Pack: 1 carton, G.W.: 15.4kgs, Meas.:49*61*36cm

  OPTIONAL        INCLUDED




XJM200DIC  (Differential Interference Contrast)

Pris XJM200DIC: 88000,-

XJM200DIC Differential Interference Contrast Metallurgical microscopes are suitable for
differential-interference -contrast-  observation in the surface of un-transparent object .
It equipped excellent UIS optical system and the notion of modularization function design,
provide excellent optical performance and the update of the system.
The product has beautiful configuration, easy operation, clear image,
so it is the perfect research instrument for detection and analytic of the precision engineering,etc.




Observation system

Thee gemel mode binocular is inclined 45 degree.
The operator cervix and shoulder are released from tired in period of time keeping bow or head-up.

The eyepiece field of view number is Φ22mm and eyepatch can be added.

Mechanical Stage


Mechanical Stage

The circular chromeplate substage is located in the center of mechanical stage so that enable rotate the specimen in the polarization observation. The abnormity observation window is suit for different size specimen.



Illumiation System



Illumiation System

Integrated illumination can make up the difference of halogens by adjusting the spacial position.

The illumination mode is “Kohler illumination” and the adjustment of field
and aperture diaphragm is achieved by turning the control plate, the adjustment mode is smooth and comfort.

Fully taken into account the cooling effect of illumination system so that the surface temperature
of lamp house is lower, the operation is safer.

Simpler and quicker way to replace the bulb without any tools.
Integrated illumination can make up the difference of halogens by adjusting the spacial position.


DICobservation

                          DICobservation

Equip high quality DIC objectives and DIC observation system,
in ord to show the clear, porfile salint and 3D


Photography Unit


Photography Unit

The photographic observation output is seting up on the back of main body frame,
so that the accessories of camera don’t cause interference to eyepiece observation.

Microphotography in 100% light flux, suits for low illuminance microphotography.






Polarized observation


DIC observation


DIC observation



Specification

Eyepiece

Wide field WF10X(Φ22mm)

Objective

Infinity plan achromatic objectives with long working distance(no cover glass)

LMPlan5X/0.12DIC Work distance18.2 mm

LMPlan10X/0.25DIC Work distance20.2 mm

LMPlan20X/0.35DIC Work distance6.0 mm

PL L40X/0.60  Work distance3.98 mm

DIC push-pull group

 Suitable for LMPlan5X10X20X DIC objective

Eyepiece tube

Inclination 45°and interpupillary distance:53~75mm

Focus system

Coaxial coarse/fine focus with tension adjustable and up stop,minimum division of fine focusing:2.0μm.

Nosepiece

Quintuple(backward ball beaing inner locating)

Stage

Mechanical stage,size242mmX200mmmoving range: 30mmX30mm.

Rotundity and rotatable stage sizeФ130mm minimal clear aperture is less then Ф20mm

Illumination system

12V50W halogen lampbrightness adjustable

Integrated field diaphragm ,aperture diaphragm and system polarizer

Equipped with frosted glass and yellow ,green and blue filters




ZJM300

 Pris:  18300,-

 High-contrast, Satisfied brightness, Vivid revivification, Nice resolution

Observation and evaluation of metallurgical specimens is fast and easy by KOZO's XJM300 series inverted metallurgical microscope with finity plan achromatic optics system. An full-integration design applies in the T-type scope body allowing high stability. Low location preposing focusing system perfectly matches the ergonomics. Polarizer and Analyzer lead a convenient polarizing application.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare is also available for option.

Specifications
XJM300
Optical System
Finity Optical System
Viewing Head
Siedentopf trinocular, inclined at 45°, light distribution: 20:80
Eyepieces
WF10X/18mm
●●
WF10X/18mm with reticule
WF5X/20mm
WF12.5X/14mm
●●
WF16X/13mm
Objectives
Plan Achromatic 2.5X/0.07
Plan Achromatic 4X/0.10
Plan Achromatic 10X/0.25
Plan Achromatic 20X/0.35 (S)
Plan Achromatic 40X/0.65 (S)
Plan Achromatic 100X/1.25 (S, O)
Nosepiece Quadplex
Stage
Double Size: 180×165mm,
Moving Range: 50×40mm
Stage Plate
1 (Φ10)
2 (Φ20)
3 (Φ40)
Main Body

Polarizing Slide

Analyzing Slide

Illuminator
6V/30W halogen lamp,
Spare lamp: 2 pcs, spare fuse: 2 pcs
Filters
Blue, Green, Grey, White
Micrometer
Division 0.01mm
   OPTIONAL        INCLUDED
Pack: 1 carton. G.W.: 15KGS, 11KGS, Meas.: 58.6*58.6*33CM

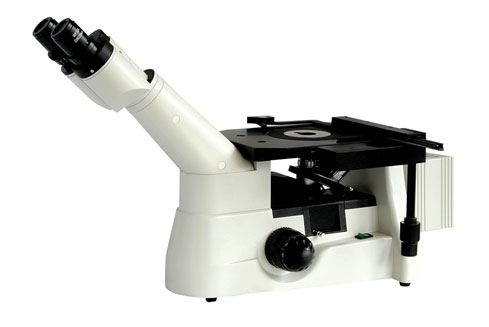

XJM400 (4 modeller)

Priser:   XJM 401: 17800,-   XJM402: 18600,-  XJM403: 19800,-  XJM404: 20000,-

The optics of XJM400 series inverted metallurgical microscope provide flat, sharp, and brilliantly clear images while achieving longer working distances.
Developed for bright field and simple polarizing observation, and designed to be compact, durable but easy operation, it is excellent for metallurgraphic and electronic components as well as materials field and quality control departments.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare is also available for option.



Specification
XJM401
XJM402
XJM403
XJM404
Optical System
Finity Optical System


Infinity Optical System F=200mm


Viewing Head
Siedentopf binocular head,
Inclined at 45 °
Interpupillary distance: 55~75mm


Siedentopf trinocular head ,
Inclined at 45 °
Interpupillary distance:55~75mm


Eyepiece
WF10X/20mm


WF10X/22mm


WF10X/20mm with reticule 0.1mm
Nosepiece
Quadruple nosepiece


Quintuple nosepiece

Objective
195 metallurgical objective 4X,10X, 20X, 40X


Infinity metallurgical objective 4X,10X, 20X, 40X


50X/0.75 WD=1.9mm
80X/0.9 (S) WD=0.9mm




Stage
Double layers size: 242×172mm Moving range: 75×50mm
Central Stage 110mm
Condenser
Abbe NA=1.25 condenser with iris diaphragm & filter
Focusing
Coaxial coarse and  fine focusing adjustment with rack and pinion mechanism
Fine focusing scale: 0.002mm
Illumination
Epi-Kohler illumination with aperture iris diaphragm and field iris diaphragm
Transmission light,
12V 30W. AC85V~230V
Adjustable brightness
Polarizing
Analyzer rotatable 360°, polarizer and analyzer can be swing in / out of the optical path
Filter
Blue, green, yellow
Micrometer
0.01mm
   OPTIONAL        INCLUDED
 Pack: 1 carton, G.W.: 12KGS, Meas.: 81*31*47CM




XJM500
(2 modeller)




Priser:  XJM500M: 10800,-  XJM500B: 11800,-

 As one of our base-model inverted metallurgical microscopes, but the XJM500 series is made with the same precision and quality standards as our more advanced microscopes.
Employs all new and improved finity plan optical system and with its small footprint and cost-efficiency, XJM500 series is the best choice for researching of university, factory , institutions and so on.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis softeare is also available for option.

Specification
XJM500M
XJM500B
Optical System
Finity Optical System
Viewing Head
Siedentopf monocular, inclined at 45°

Siedentopf binocular, inclined at 45°

Eyepieces
WF10X/18mm
●●
●●
WF12.5X/14mm
WF16X/13mm
WF5X/20mm
WF10X/18mm (Reticule, 0.1mm)
Objectives
Plan Achromatic 2.5X/0.07
Plan Achromatic 4X/0.10
Plan Achromatic 10X/0.25
Plan Achromatic 20X/0.35 (S)
Plan Achromatic 40X/0.65 (S)
Plan Achromatic 100X/1.25 (S,O)
Stage
Double stage size: 180×180mm
Moving Range: 50×40mm
Stage Plate
1 (Φ10)
2 (Φ20)
3 (Φ40)
Set of Stage Plate

Main Body

6V/20W Halogen Lamp
Spare lamp: 2 pcs
Spare fuse: 2 pcs
Filters
Blue, Green, Grey
Micrometer
Division 0.01mm
This model also can be inside digital camera system with 130K and 320K pixes.

  OPTIONAL        INCLUDED

Pack: 1 carton, G.W.: 8KGS, N.W.: 7KGS, Meas.: 43.7*26.8*52.2CM



  XJM600 (2 modeller)


Priser: XJM600B: Kr. 32900,-    XJM700T 347000,-



The advanced upright reflected and transmitted light metallurgical microscope XJM600 series is a comprehensive model with multiple applications such as bright and dark field, DIC, polarizing observations, etc. Aimed at the semiconductor industry, wafer manufacturing, electronic information industry, metallurgical industry and so on, XJM600 series is developed for applications like FPD, circuit encapsulation, circuit substrate, material, casting, Metal and Ceramic parts, Precision moulds, etc.
The ergonomic design enables your work with XJM600 series comfortable and relax.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis soft is also available for option.



Specification
XJM600B
XJM600T
Optical System
Infinity Optical System F=200mm
Viewing Head
Seidentopf binocular head

Seidentopf trinocular head

Eyepiece
WF10X/25mm
●●
●●
WF10X/20mm with retical
Objectives
Plan Achromatic BD5X/0.1 WD=29.40mm
Plan Achromatic BD10X/0.25 WD=16.00mm
Plan Achromatic BD20X/0.40 WD=10.60mm
Plan Achromatic BD40X/0.60 WD=5.40mm
Plan Achromatic BD50X/0.55 WD=5.10mm
Plan Achromatic BD100X/0.80 WD=3.00mm
Stage
Double layers stage: 189×160mm
Moving range: 80×50mm
Nosepiece
Quadruple with DIC
Condenser
Swing type NA=1.25 Abbe condenser with iris diaphragm and filter
Focusing System
Coarse and fine focusing adjustment range: 25mm
Illumination
Reflection light: 12V/50W AC85~230V
Transmission light: 12V/50W AC85~230V
Accessories
Polarizer
Analyzer
  OPTIONAL        INCLUDED
Pack: 1 carton, G.W.: 8KGS, N.W.: 7KGS, Meas.: 43.7*26.8*52.2CM

XJM700


Pris: XJM700 Kr. 30500,-

XJM700 Inverted metallurgical microscope provide multiple function as your need.
At present it is the biggest voulume style in all China microscope manufacture.
While it also can be with CCD and digital camera installed on trinocular head.


Parts
Specifications
XJM700
Optical System
Infinite Plan Optical System F=200mm
Viewing Tube
Seidentopf trinocular head, interpupillary distance 52~75mm, 45° inclined, diopter adjustable.
Eyepiece
WF10X/20, High eye-point up to 21mm.
●●
WF10X/22, High eye-point up to 21mm.
WF16X/14mm
WF10X/20mm with reticule
Nosepiece
Quintuple, Inward facing.
Objectives
Plan Achromatic 4X/0.10  WD=12.86mm
Plan Achromatic 10X/0.25  WD=9.67mm
Plan Achromatic 20X/0.40  WD=7.97mm
Plan Achromatic 100X/1.25(S,O)  WD=0.17mm
Long working distance Plan Achromatic 50X/0.60  WD=2.40mm
Long working distance Plan Achromatic 80X/0.75  WD=1.70mm
Stage
Fixed stage: 240×260mm, low-position co-axial flexible adjusting handle, moving range:135×85mm
Double layers stage: 350×208mm,moving range: 50×50mm,low-positioned co-axial flexible adjusting handle.
Illumination
12V 50W halogen lamp
12V 50W Osram halogen lamp
12V 100W halogen lamp
12V 100W Osram halogen lamp
Fuse tube: 250V 3.15A Φ5×20
Filter
Blue filter (Φ26)
Green filter (Φ26)
Yellow filter (Φ26)
Attaches
Simply Polarizer and Analyzer
C-Mount
1X
0.5X
0.25X (Fit 1/3"CCD)
Digital Camera Joint
(Please advice your digital camera model in advance)
Allen Screw Driver
Φ2mm
Φ2.5mm
Φ3mm
Power Wire
CE Certified
Optional
Material analysis soft
Package
Inner: Foam, Plastic Bag;
Outer: Carton
  OPTIONAL        INCLUDED

Pack: 1 carton, 45kgs, Meas.:690*680*420mm



 XJM800 Bright and Dark Microscope with DIC option

Pris: 49800,-


XJM800/BD bright and dark field upright metallurgical microscope with the infinity optical system is suitable to observe opaque object.
It can achieve polarization, dark field and DIC image.
Compact and steady main frame body is embodiment for the shock resistance.
The ideal ergonomic design is adopted in this unit and has easier operation and wider space.

With long working distance plan achromatic objectives (no cover glass), it can get sharp pictures and wide field,
With large move range mechanical stages, moving range:8"X8"(204mmX204mm), minimum division of fine focusing is 0.8μm.
light with 100% can be to the top port.


Parts

Specifications

XJM800BD

Optical System

Infinite Plan Optical System F=200mm

Viewing Tube

Siedentopf trinocular head, interpupillary distance 53~75mm, 30° inclined, diopter adjustable, can 100% split light.

Eyepiece

WF10X/22

●●

WF10X/20mm with reticule

Nosepiece

Quintuple, Inward facing.

DIC System

10X DIC Push-Pull Group



20X DIC Push-Pull Group



Objectives

Long working distance Plan Achromatic 5X/0.10  WD=26.12mm



Long working distance Plan Achromatic 10X/0.10  WD=20.20mm



Long working distance Plan Achromatic 20X/0.25  WD=8.80mm



Long working distance Plan Achromatic 40X/0.10  WD=3.68mm



Long working distance Plan Achromatic 50X/0.40  WD=3.68mm



Long working distance Plan Achromatic 60X/0.10  WD=3.18mm



Long working distance Plan Achromatic 80X/0.10  WD=1.28mm



Long working distance Plan Achromatic 100X/1.25(Dry)  WD=0.40mm



Plan APO 250X/0.70 WD=2.00mm



Plan APO 500X/0.75 WD=1.96mm



Long working distance Plan Achromatic BD5X/0.60  WD=9.70mm

Long working distance Plan Achromatic BD10X/0.60  WD=9.30mm

Long working distance Plan Achromatic BD20X/0.60  WD=7.23mm

Long working distance Plan Achromatic BD50X/0.60  WD=2.50mm

Long working distance Plan Achromatic BD40X/0.60  WD=3.00mm

Long working distance Plan Achromatic BD60X/0.60  WD=1.90mm

Long working distance Plan Achromatic BD80X/0.60  WD=0.80mm

Long working distance Plan Achromatic BD100X/0.75  WD=0.22mm

Stage

Double Stage: 280×270mm, moving range:204×204mm(8’X8’ Water)

Illumination

6V 30W halogen lamp



12V 50W halogen lamp

Filter

Blue filter (Φ26)

Green filter (Φ26)

Yellow filter (Φ26)

Ground glass (Φ26)

Attaches

Simply Polarizer and Analyzer

C-Mount

1X

0.5X

Digital Camera Joint

(Please advice your digital camera model in advance)

Optional

Material analysis soft

                                 ○  OPTIONAL        INCLUDED
                                                 Pack: 1 carton, G.W.: 45kgs, Meas.:69*68*42cm


XJM900 (4 modeller)

Priser: XJM901: 15200,-  XJM902: 16000,-   XJM903: 19000,-   XJM904:  19600,-

Our new but still cost-efficiency upright metallurgical microscope XJM900 series is designed with a modular concept
allowing user customization depending on your particular task, which accepts a variety of attachments like polarization etc.
The frame is exceptionally stable but with very small footprint to save your space on tabletop.
CCD or digital camera can be attached for image capture and professional but user-friendly metallurgical analysis

Specification

XJM901

XJM902

XJM903

XJM904

Optics System

Infinity Independent Plan Achromatic Optical System F=200mm

Viewing Head

Siedentopf binocular tube, interpupillary distance 52~75mm, 30°inclined, 360° rotateable, diopter adjustable.





Siedentopf binocular tube, Interpupillary distance 48~75mm, 30°inclined, 360° rotateable, diopter adjustable.





Siedentopf trinocular tube, interpupillary distance 52~75mm, 30°inclined, trinocular light is split 20/80 by a high quality prism, diopter adjustable.





Siedentopf trinocular tube, Interpupillary distance 48~75mm, 30°inclined, trinocular light is split 20/80 by a high quality prism, diopter adjustable.





Eyepiece



WF10X/20mm, High eye-point up to 21mm.

●●

●●

●●

●●

WF10X/22mm, High eye-point up to 21mm.

WF16X/14mm

Reticule eyepiece: WF10X/20mm

Nosepiece

Quadruple, inward

quintuple, inward

Objective

Plan Achromatic 4X/0.13, WD=12.31mm

Plan Achromatic 10X/0.30, WD=5.03mm

Plan Achromatic 20X/0.45 , WD=2.71mm

Plan Achromatic 50X/0.70 (S) , WD=0.72mm

Plan Achromatic 80X/0.80 (S), WD=0.69mm

Plan APO 250X/0.70 (Dry) WD=2.00mm

Plan APO 500X/0.75 (Dry) WD=1.96mm

Stage

Double layers stage: 156×138mm Moving Range: 76×54mm

Double Stage: 185×177mm Moving Range: 76×54mm

Condenser

Abbe condenser NA=1.25

Dark condenser (Dry)

Dark condenser (Oil)

Swing out condenser

Focusing

Coaxial coarse and fine focusing knob, height adjustable.

Reflected Light

12V 50W Osram halogen lamp

12V 100W Osram halogen lamp

Illumination

6V 20W Osram halogen Bulb





6V 30WOsram halogen Bulb





C-Mount

1X





0.5X





0.25X





Digital Camera Adapter

(Please advice your digital camera model in advance)







Reflected Light Filter

Blue

Green

Yellow



 ○  OPTIONAL        INCLUDED


BS-5070TR (2 modeller)

BS-5070TR  Pris: Kr. 32300,-   Modell TTR på forespøsel

Introduction

  The BS-5070BTR/TTR series transmitted and reflected polarizing microscopes are     specifically designed for geology, minerals, metallurgy, university teaching laboratories and other sectors.
     They are also used in chemical fiber industry, semiconductor industry and the pharmaceutical inspection industry more and more.

      The BS-5070BTR/TTR polarizing microscope features a highly robust construction and first class optics designed to provide a long life and excellent quality images.
The microscopes can be used for Single polarization, othorgonal polarization and conoscopic observation. Accessories like Gypsum slide, Mica slide, Quartz wedge and Mechanical stage are available.

Features

1. Excellent Infinite Optical System

2. Widely used in geology, Mineralogy, Fossil fuel exploration

3. Single polarization, othorgonal polarization or conoscopic observation is available.

Application area

With the features of easy operation, complete functions and economy, it is an ideal instrument in geology,

Spesifikasjoner



BS6002 models

BS-6002


Priser:  6002BR: Binokulær,Reflekterende: Kr. 18600,-
BS-6002TBR: Binokulær med C-Mount port, Reflekterende:   Kr. 19100,-



Item

Specification

BS-6002

BR

BS-6002

BTR

Optical System

Infinite Optical System

Viewing Head

Seidentopf Binocular HeadInclined 30°, Rotatable 360°, Interpupilary Distance: 50-75mm

Seidentopf Trinocular HeadInclined 30°,Rotatable 360°, Interpupilary Distance: 50-75mmLight Distribution: 0:100

Eyepieces

WF10×/18mm

WF10×/18 mm (Reticule 0.1mm)

WF5×/19mm

WF12.5×/14mm

Infinite Plan Objective

(no cover glass)

5×/0.1

W.D=6.73mm

10×/0.25

W.D=4.19mm

20×/0.4(S)

W.D=2.14mm

40×/0.65 (S)

W.D=0.45mm

100×/1.25 (Oil) (S)

W.D=0.12mm



Long Working Distance

Infinite Plan Objective

(no cover glass)

20×/0.4 (S)

W.D=8.35mm

40×/0.65 (S)

W.D=3.90mm

50×/0.7 (S)

W.D=1.95mm

80×/0.80 (S)

W.D=0.85mm

Nosepiece

Backward Quintuple Nosepiece

Mechanical Stage

Mechanical Stage For Reflected IlluminationStage Size: 190×140mm, Travel: 78mm×55mm



Mechanical Stage For Transmitted Illumination, Stage Size: 190×140mm, Travel: 78mm×55mm



Focus

Coaxial Coarse and Fine FocusingFine Division 0.002mm,

Fine Stroke 0.2mm per Rotation, Moving Range 25mm





Stage Plate

Place The Sample on The Plate

Slide Clip





Glass Plate





Micrometer

Stage Micrometer 0.01mm

Polarizing Unit

Polarizing /Analyzer Slide

Condenser

Abbe N.A. 1.25(Iris Diaphragm)



Illumination

12V/50W Halogen Lamp (Reflected Illumination)

6V/20W Halogen Lamp (Transmitted Illumination)

6V/30W Halogen Lamp (Transmitted Illumination)

Field Diaphragm





Filter

Blue

Green

Yellow

C-mount Adapter

1× C-mount

0.5× (Focus Adjustable) C-mount
