Teleskop & Guiding kamera

Velkommen til ASTROSIDEN


Normet leverer CCD teleskopkamera og CMOS USB3 Guiding kamera  (Scroll down)



  CCD teleskopkamera       Priser kommer 09. november

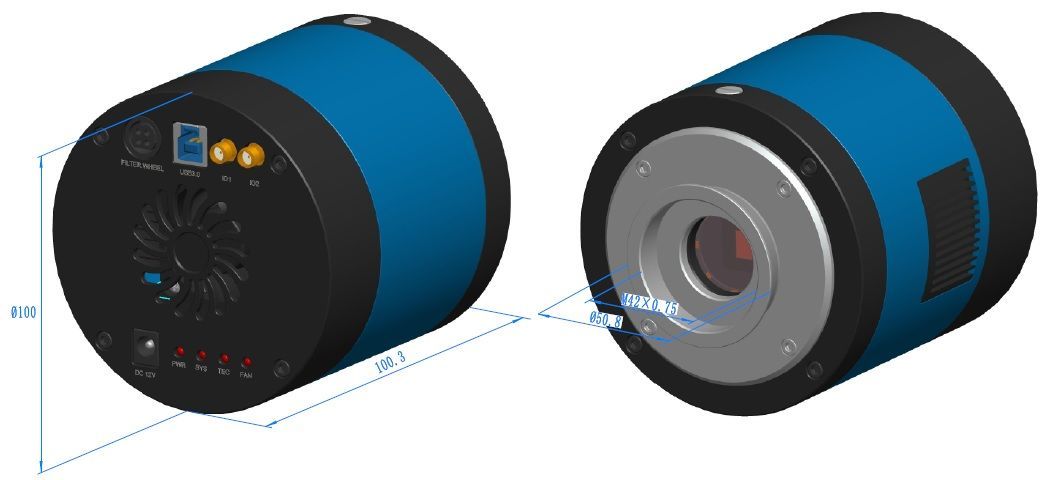

Mål

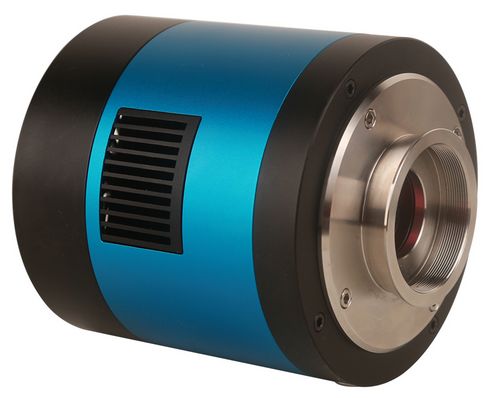

  • ATR3CCD Series 2"+M42x0.75 Mount USB3.0 TE-Cooling CCD Camera

  • Standard 2 Inch+M42x0.75 mount camera with SONY ExView HAD CCD sensor from 1.4M ~ 6M;
  • Two-stage TE-cooling with controllable electric fan;
  • Working temperature can be regulated to specified temperature;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • Up to 45 degrees temperature drop ensures high quality image with low noise;
  • Up to 1 hour long time exposure;
  • USB3.0 5Gbit/second interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupSky;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#, DirectShow, Twain Control API;
  • ATR3CCD Series 2"+M42x0.75 USB3.0 TE-Cooling CCD Camera
    ATR3CCDToupTek ATR3CCD is an Astromony Temterature Regulated USB3.0 CCD camera and it adopts Sony Exview HAD CCD sensor as the image-picking device. Sony Exview HAD CCD is a CCD that drastically improves light efficiency by including near infrared light region as a basic structure of HAD (Hole-Accumulation-Diode) sensor. ToupTek uses EXCCD for simplicity. USB2.0 is used as the data transfer interface.

          ATR3CCD comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#, DirectShow, Twain Control API;

          The ATR3CCD can be widely used in low light environment and microscope fluorescence image capture and anaysis.

    USB3.0 Thermoelectric cooling SONY CCD Sensor Astronomikamera
    Modeller og priser



    Model

                              Description

       Pris eks MVA



    ATR3CCCD06000KPA

    6.0MP | USB3.0 | 1" | color CCD | Progressive

          Kr. 23.400,-



    ATR3CCCD06000KMA

    6.0MP | USB3.0 | 1" | mono CCD | Progressive

          Kr. 24.200,-



    AP106000A

    2.8MP | USB3.0 | 2/3" | color CCD | Progressive

          Kr. 20.400,-



    ATR3CCD02800KMA

    2.8MP | USB3.0 | 2/3" | mono CCD | Progressive

          Kr. 21.200,-



    ATR3CCD01400KPB

    1.4MP | USB3.0 | 2/3" | color CCD | Progressive

          Kr. 19.200,-



    ATR3CCD01400KMB

    1.4MP | USB3.0 | 2/3" | mono CCD | Progressive

          Kr. 20.000,-



    ATR3CCD01400KPA

    1.4MP | USB3.0 | 2/3" | color CCD | Progressive

          Kr. 17.500



    ATR3CCD01400KMA

    1.4MP | USB3.0 | 2/3" | mono CCD | Progressive

          Kr. 18.300,-

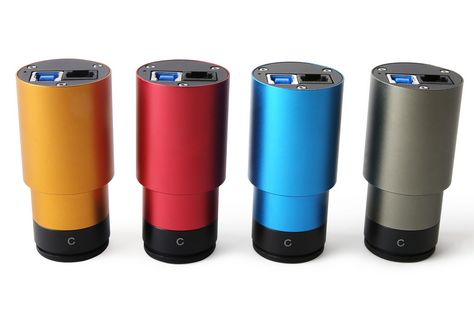

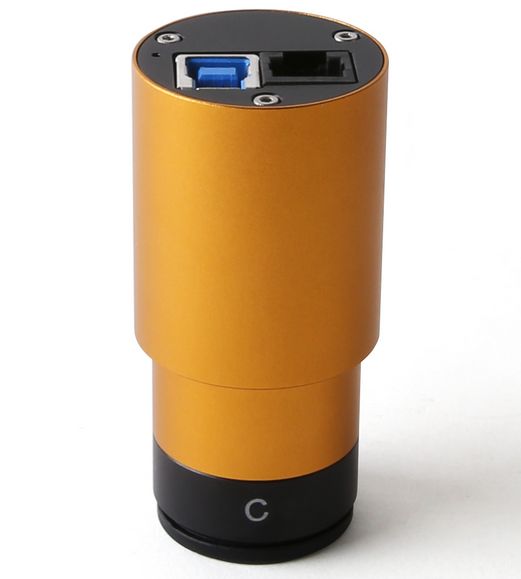

    CMOS USB3 Guiding Kamera







  • Camera for auto-guiding and multiple types of astrophotography (Moon, Sun, Planets,Galaxies, Cluster and Nebulae)
  • Carefully selected SONY Exmor, Exmor R, Exmor RS CMOS sensor with USB3.0 interface
  • Compact size and low amp glow
  • Protect window with double-side AR coating or IR-Cut filter
  • A built-in ST4 auto guider port for the easy connection of the auto guider
  • Dedicated astrophotography software to support video preview, video record, video processing, image capture and process, dark field correction and raw data output
  • Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography software
  • Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece
  • Standard C-mount(inner) for standard industrial lens.
  •

     ToupTek G3M camera is guiding CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB3.0 is used as the data transfer interface. A built-in ST4 auto guider port is designed for the easy connection of the auto guider.

           Aluminum CNC housing with standard 1.25 inch interface(outer) to fit to telescope eyepiece and standard C-mount(inner) for standard industrial lens.

          Native/ASCOM/WDM driver for easy connection with 3rd party astrophotography softwares.

           The GCMOS camera can be widely used in astrophotography (Moon, Sun, Planets as well as Galaxies, Cluster and Nebulae).

         USB3.0 Guiding Kamera m/ SONY EXMOR CMOS Sensor
            Modeller og priser





    Model

    Description

    Pris eks. MVA





    G3M178C

    6.3MP | USB3.0 | 1/1.8" | color CMOS | Ultra-Fine III

          Kr. 2.900,-





    G3M178M

    6.3MP | USB3.0 | 1/1.8" | mono CMOS | Ultra-Fine III

          Kr. 3.000,-





    G3M290C

    2.0MP | USB3.0 | 1/2.8" | color CMOS | Ultra-Fine III

          Kr. 2.700,-





    G3M290M

    2.0MP | USB3.0 | 1/2.8" | mono CMOS | Ultra-Fine III

          Kr. 2.800,-





    G3M224C

    1.2MP | USB3.0 | 1/3" | color CMOS | Ultra-Fine III

          Kr. 2.700,-





    G3M385C

    2.0MP | USB3.0 | 1/2" | color CMOS | Ultra-Fine III

          Kr. 2700,-





    G3M287C

    0.4MP | USB3.0 | 1/2.9" | color CMOS | Ultra-Fine III

          Kr. 3.500,-





    G3M287M

    0.4MP | USB3.0 | 1/2.9" | mono CMOS | Ultra-Fine III

          Kr. 3.600,-
