Working stage dimension140x140x36 cm.
Size of connection: Φ95mm
Glass size of working stage: Φ95mm
Moving range: 75X55mm
Protection level of double-sided electronic
digital outside micrometers
(Anti splash water and dust prevention)
Double-sided displays are convenient for
both hands and the reading
of any measurement.
Measure In Imperial/Metric.
Adjustment direction is showed on displays.
Micrometer heads moving range:30mm
Precision resolution: 0.001mm/0.00005"
Utslag: 5,5cm X 6,5cm
XY-bord med motor
DMC series electrical stage has been designed for an economic microscope automation system. Driven by stepping motor, (X, Y) two axis adjustment automation have come true.
fine ball screw, flexible coupling , stepping motor, limit switch, RS-232 adaptor, and dual slides finger
The characteristic of DMC-A series electrical microscope stage:
1. Easy to be interchange: DMC-A series electrical microscope stage is easy to be interchange. There is no need to make hole on it then it can easily be fixed on the microscopes such as: Nikon, Leica, Zeiss, Olympus and KOZO.
2. The outside looking is smart and popular, and the stage is elegant and beautiful design. The stage can be matched with those famous microscope perfectly because the surface of the stage is using Nikon’s best graphite craftwork.
3. Computer software control: The computer software can control both stage and Z direction moving via the controller. So it can realize the function of multi-view field auto-moving and auto focusing, as well as auto picture, auto return and auto control etc;
4. Joystick control: fully automaticity stage moving and focusing can also be controlled by the joystick via the controller.
5. Hand-control: Beside electrical control our stage provide hand control knob which maintain the habit of hand control for some customer.
6. The max- edge setting: the both side of the stage, their has the max- edge setting which make sure the safety of sample.

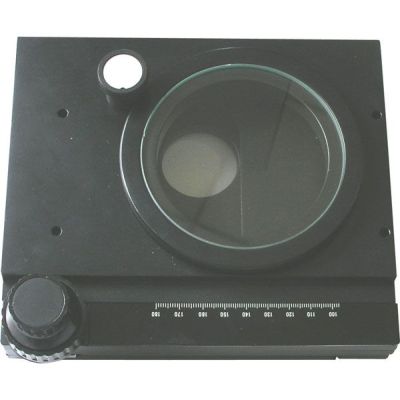

XY Manual Measurement Rotatable Stage
Travel distance: 75X55mm,
Mount Φ95mm, 0°~ 360°
Rotatable, working table glass Φ95mm
