Polarisasjonsmikroskop

Alle priser eks. MVA

Normet fører mange typer mikroskop. Her er  4 top end  modeller: XJP300-serien



XP400B og XP400T


Priser: XP400B  9900.-  XP400T (trinokular): 10900,-

Specification
XP-400B
XP-400T
Optical System
Infinity Optical System F=180mm
●
●
Head
Siedentopf binocular, Inclined at 30 ° ( 50~75mm )
●

Siedentopf trinocular, Inclined at 30 ° ( 50~75mm )

●
Eyepiece
WF10X/18mm
●●
●●
WF10X/18mm with reticule
●
●
Objective
Plan Achromatic objective: 4X ,10X , 20X , 40X (S)
●
●
Plan Achromatic objective 60X(S)
○
○
Stage
Round revolving stage
Stage: Φ156mm
Rotatable: 360 °
Division 1°, Vernier division 6’
●
●
Focusing
Coaxial coarse and fine focusing adjustment with rack and pinion
mechanism Fine focusing scale  Value  0.002mm
●
●
Condenser
 N.A1.25 Abbe condenser without stress
●
●
Collector
High brightness light collector
●
●
Illumination
Halogen tungsten bulb 6V/20W.AC 85V~230V
Adjustable brightness
●
●
Halogen tungsten bulb 6V/30W
○
○
Complementer
Grps 1 λ
●
●
Mica 1/4 λ
●
●
Quartz Wedge
●
●
Measure rule
0.01 mm
●
●
Filter
Blue
●
●
Green
○
○
Amber
○
○
Neutral
○
○
Adjustment knob
Adjustment center
●
●
Optional
Eyepieces: WF16X, Stage Clip,
No-Stress objestive:100X (S,Oil)
CCD Adapter0.5X, 0.57X, 0.75X

Pack: 1 carton, G.W.: 7.5KGS, Meas.: 42*27.5*45CM

XP500



 XP-500 Transmission Polarizing microscope is our mature product which experienced years marketing development. It's the customer’s favorite products and is strong from dentifying crystals suspended in liquid, identifying minerals in core samples  to detecting defects in semiconductors ect.

Specification
XP-500B
XP-500T
Optical System
Finity Optical System
●
●
Head
Sliding binocular, Inclined at 45 ° ( 52~74mm )
●

Sliding trinocular, Inclined at 45 ° ( 52~74mm )

●
Eyepiece
WF10X/18mm
●●
●●
WF10X/18mm gridding
●
●
WF10X/18mm with reticule
●
●
WF10X/22mm
○
○
Objective
Achromatic objective: 4X ,10X , 25X , 40X (S), 63X (S)
●
●
Stage
Round revolving stage
Stage: Φ160mm
Rotatable: 360 °
●
●
Focusing
Coaxial coarse and fine focusing adjustment with rack and pinion
mechanism Fine focusing scale  Value  0.002mm
●
●
Condenser
 Swing type N.A1.25 Abbe condenser with iris diaphragm and filter
●
●
Collector
High brightness light collector
●
●
Illumination
Halogen tungsten bulb 6V/30W.AC 85V~230V
Adjustable brightness
●
●
Complementer
Grps 1 λ
●
●
Mica 1/4 λ
●
●
Quartz Wedge
●
●
Measure rule
0.01 mm
●
●
Filter
Blue
●
●
Adjustment knob
Adjustment center
●
●
Optional
Eyepieces: WF16X, WF20X, P16X
No-Stress objestive:100X (S,Oil)
CCD Adapter0.5X, 0.57X, 0.75X

 Pack: 1 carton, G.W.: 10KGS, Meas.: 32*27*58CM

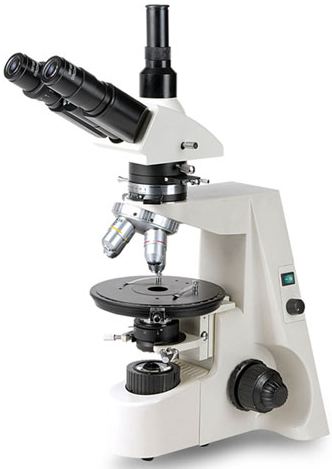

XJP200B og XJP200T

 XJP200 Transmission Polarizing microscope is one of the most professional instruments and is extremely useful for specialized medical and industrial applications, such as identifying crystals suspended in liquid, identifying minerals in core samples and detecting defects in semiconductors or finding stress points in metal, glass and other materials.
The microscope is equipped with attachments such as gypsum(1λ), mica(1/4 λ ) test piece, quartz wedge and attachable mechanical stage.
It is a novel microscope with complete function and good quality.

Specification
XJP200B
XJP200T
Optical System
Infinity Optical System F=200mm
●
●
Viewing Head
Siedentopf binocular head. Inclined at 30 °,
(50~75mm )
●

Siedentopf trinocular head. Inclined at 30 °,
(55~75mm )

●
Eyepiece
WF10X /22mm
●
●
WF10X/18mm Gridding
●
●
WF10X/18mm with Reticule
●
●
Objective
Plan Achromatic 4X,10X, 20X, 40X (S), 63X (S)
●
●
Stage
Round revolving stage
Stage: Φ160mm
Rotatable: 360 °
●
●
Focus
 Coaxial coarse and fine focusing adjustment with
 rack and pinion mechanism Fine focusing scale
 Value  0.002mm
●
●
Condenser
 Swing type NA=1.25 Abbe condenser with iris
 diaphragm and filter
●
●
Collector High brightness light collector
●
●
Illumination
Halogen tungsten bulb 6V 30W. AC85V~230V
Adjustable brightness
●
●
Complementer
Grps 1 λ
●
●
Mica 1/4 λ
●
●
Quartz Wedge
●
●
Scale Rule
0.01 mm
●
●
Filter
Blue
●
●
Optional
Eyepieces: WF16X, WF20X, P16X
 Infinite plan achromatic: 100X (S,O)
CCD Adapter0.5X, 0.57X, 0.75X

Pack: 1 carton, G,W.: 12KGS, Meas.: 47*39*50CM

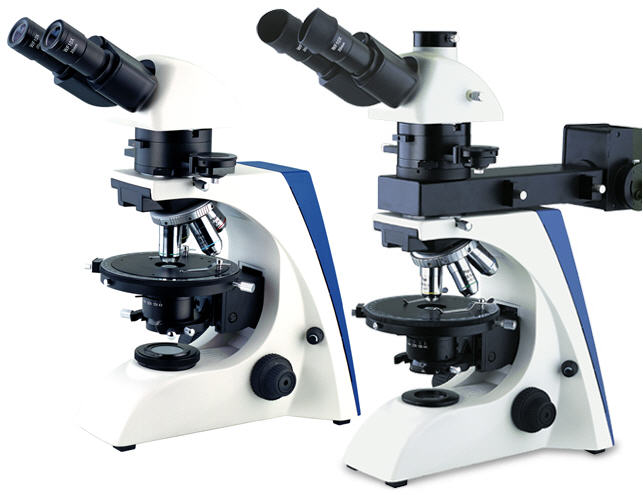

XJP300-serien


XJP301: Kr. 14800,-    XJP302: Kr. 15800,-     XJP303: Kr.  22400,-

XJP304: Kr. 22800,-

 The XJP300 is a new transmitted and incident light polarized microscopes are the XJP300 Series.
 The XJP300 Series employs all new and improved Non-stress Plan optics and reflected illumination
 system can also be attached. Kozo’s Infinity Corrected Optical System makes the study of thin
 sections and other mounted samples fast and easy while delivering an excellent
 cost-to-performance ratio.
 Its perfect performance ensures the accuracy of every analysis.
  •

    Specification
    XJP301
    XJP302
    		 XJP303 XJP304
    Optical System
    Infinity Optical System F=180mm

    Head
    Seidtopf binocular head inclined at 30°,Rotatable 360°, interpupilary distance: 50~75mm
    ●

    ●

    Seidtopf trinocular head, inclined at 30°,Rotatable 360°,Interpupilary distance:50~75mm,Light distribution: 0:100 or 20/80

    ●

    ●

    Eyepiece
    WF10X/18mm

    ●
    ●
    WF10X/20mm
    ●
    ●


    WF10X/18 mm (Reticule 0.1mm)

    ●
    ●
    WF10X/20 mm (Reticule 0.1mm)
    ●
    ●

    Non-stress
    Infinity Plan Objective
    4X/ 0.1
    ●
    ●
    ●
    ●
    10X/ 0.25
    ●
    ●
    		 ●
    ●
    20X/ 0.40 (S)
    ●
    ●
    ●
    ●
    40X/ 0.65 (S)
    ●
    ●
    ●
    ●
    60X/ 0.80 (S)
    ○
    ○
    		 ●
    ●
    Nosepiece
    Quintuple(Adjustable Independence)
    ●
    ●
    ●
    ●
    Polarizing Unit
    Rotatable 360° (Module Type, Can Be Locked)
    ●
    ●
    ●
    ●
    Bertrand Lens
    Inbuilt, Center Adjustable
    ●
    ●
    ●
    ●
    λSlip
    First Class Red
    ●
    ●
    ●
    ●
    1/4λSlip

    ●
    ●
    ●
    ●
    Quartz Wedge
    (Ⅰ-Ⅳ Class)
    ●
    ●
    ●
    ●
    Revolving Round Stage
    Rotatable 360°, Center Adjustable, Division 1°,
    Vernier division 6’
    ●
    ●
    ●
    ●
    Polarizing Attached Mechanical Stage

    ○
    ○
    		 ○
    ○
    Condenser
    Abbe N.A. 1.25, Non-stress
    ●
    ●
    		 ●
    ●
    Polarizing Unit with Scale
    Rotatable 360°,
    Can Be Locked
    ●
    ●
    		 ●
    ●
    Transmission Light
    6V 20W Halogen Lamp Koehler Illumination
    ●
    ●
    		 ●
    ●
    6V 30W Halogen Lamp
    ○
    ○
    		 ○ ○
    Reflecting Light
    12V 50W Halogen Lamp
    		     ● ●
    2 A Fuse
    Spare: 1 pc
    ●
    ●
    		 ●
    ●
    Filter
    Blue,
    ●
    ●
    ●
    ●
    Amber
    ○
    ○
    		 ○ ○
    Green
    ○
    ○
    		 ○ ○
    Neutral
    ○
    ○
    		 ○ ○
    C-mount
    0.5X,1X
    ○
    ○
    		 ○
    ○
 Pack: 1 carton, G.W.: 12KGS, Meas.: 48*48*31.5CM



 XPJ600


Pris 19400,-

 XJP600 polarizing microscope is utilized polarizing light to observe and research the matter
 which have double refraction features, enable to observe in single polarizing, orthogonal, iconoscope.
 It can be applied in geology, chemicals, physic and leech Dom fields, widely used to observe the
 crystal of liquid macromolecule polymer, biomedical polymer and liquid crystal.
 It is the ideal instrument for scientific research and universities teaching demo.



 Features
▲        Adopt infinity optical system.
▲        Infinity with strain-free plan achromatic objectives, the field of view is widely and clear.
▲        Wide-field plan eyepieces: field number Ф22mm.
▲        Coaxial coarse/fine focus system, with tensional adjustable and up stop,
            minimum division  of  fine focusing: 2μm.
▲        Take-down style polarizer, 360°rotatable, have 0,90,180,270 four scale, located down
            the aperture diaphragm
▲        Impellent style analyzer, 360°rotatable, push in / out from optical path conveniently
▲        Rotatable stage, 360° graduated in 1° increments, minimum retardation resolution 6' center
           adjustable and with tightener.
▲        Wide voltage range power supply (85-265V 50/60Hz), 6V30W halogen lamp, brightness
           adjustable.
▲        Trinocular can be observation for eyepieces and microphotography in 100% light flux, suits  for   low luminance microphotography.

Specification
XJP600
Optical System
Infinite Plan Optical System F=200mm
●
Eyepiece
Wide field  WF10X=22mm
●
Dividing eyepiece(field number= 22mm)    0.10mm/Div
●
Objective
Strain-free plan achromatic objective
●
PL 4X/0.10  WD=19.8 mm
●
PL10X/0.25 WD=5.0 mm
●
PL 40X/0.65(S) WD=0.66 mm
●
PL 60X/0.80(S) WD=0.45 mm
●
PL 20X/0.40 WD=8.8mm
○
PL 60X/0.80 WD=0.46mm
○
Transmitted illuminating
system
6V30W halogen, brightness enable control
●
Rotatable 360°, have 0,90,180,270 scale¡£
●
Abbe condenser N.A. is 1.25 and add iris diaphragm
●
Stage
Rotatable stage, diameter ¦µ150mm, 360° graduated (in 1° increments), minimum vernier division is 6' , center adjustable and with tightener.
●
Moving range: 30mmX25mm
○

Nosepiece
Quadruple (the center of nosepiece is adjustable )
●
Quintuple(Backward ball bearing inner locating)
○

Intermediate attachment
Integrated analyzer can be switched to normal or polarizing observe freely, enable 0~90° rotated and minimum vernier division is 12'.
●
 Puller type bertrand lens and center adjustable.
●
¦Ë, ¦Ë/4 and quarts wedge compensator.
●
Compensator
¦Ë, ¦Ë/4 and quarts wedge compensator.
●
Eyepiece tube
Trinocular is inclined 30˚ and enable to shoot in 100% light flux.
●
Focus system
Coaxial coarse/fine focus with tension adjustable and up stop device, minimum division of fine focusing: 2μm.
●
CCD Adapter
0.4X
○
0.5X
○
1X
○





 XPJ700 med skjerm.

Pris XJP700:  29800,-

XJP700 Series LCD fluorescence microscope is one new microscope,
it is suitable to observe the sample while with the sharp image.

Specification
Details
XJP700





Digital Parts
Pixes
5 Mega
●
Max Resolution
2560X1920
●
Video Resolution
640X480
●
LCD Screen
8’ TFT Screen with 800X600
●
Video Output
AV/NTSC/PAL
●
Data Output
USB2.0
●
Language
Chinese/English
●
Storage
SD Card with 4G
●
Exposure Mode
Auto
●
Data Mode
Year, Month, Day, Hour, Minute
●














Optical Parts
Optical System
Infinity optical system f=200mm
●
Eyepiece
WF10X/22mm
●
Objective
Plan 5X/0.12 WD=26.1mm
●
Plan 10X/0.25 WD=20.1mm
●
Plan 20X/0.40 WD=8.8mm
o
Plan 40X/0.60(S) WD=3.98mm
●
Plan 60X/0.7(S) WD=3.18mm
●
Plan 100X/0.85(S) WD=0.4mm
o
Focus System
Coarse and Fine, Min Division 2μ
●
Nosepiece
Inward Quadruple
●
Stage
210X140mm, Moving Range 75X50mm
●
Condenser
Abbe Condenser NA=1.25, Adjustable
●
Illumination
Halogen lamp, 6V/30W, Adjustable
●
Polarizer can be rotated 360 degree
●
Analyzer can be rotated 360 degree with scale
●
Intermediate
Puller type betrand lens
●
compensator
λλ/4 quarts wedge compensator
●
Optional
0.5X CCD Adapter
o
1X CCD Adapter
o
Weight
10KGS










XJP900B og 900T(trinokular)

Pris:  XJP900B:  18300,-   XJP900T:  18900,-





Specification
XJP-900B
XJP-900T
Optical System
Infinity Optical System F=200mm
●
●
Head
Siedentopf binocular, Inclined at 30 ° ( 52~75mm )
●

Siedentopf trinocular, Inclined at 30 ° ( 52~75mm )

●
Eyepiece
WF10X/20mm
●●
●●
WF10X/22mm
WF10X/20mm with reticule
○
○
Objective
Plan Achromatic objective: 4X ,10X , 40X (S), 60X(S)
●
●
Plan Achromatic objective 2X, 20X(S), 100X(S,O)
○
○
Stage
Round revolving stage
Stage: Φ160mm
Rotatable: 360 °
Division 1°, Vernier division 6’
●
●
Focusing
Coaxial coarse and fine focusing adjustment with rack and pinion
mechanism Fine focusing scale  Value  0.002mm
●
●
Condenser
 Swing out N.A1.25 Abbe condenser without stress
●
●
Collector
High brightness light collector
●
●
Illumination
Halogen tungsten bulb 6V/20W.AC 85V~230V
Adjustable brightness
●
●
Halogen tungsten bulb 6V/30W
○
○
3W LED
○
○
3W LED Recharge Battery
○
○
Complementer
Grps 1 λ
●
●
Mica 1/4 λ
●
●
Quartz Wedge
●
●
Measure rule
0.01 mm
●
●
Filter
Blue
●
●
Green
○
○
Yellow
○
○
Neutral
○
○
Adjustment knob
Adjustment center
●
●
Optional
Eyepieces: WF16X/14mm, Stage Clip,
C Mount 0.5X, 1X, 0.75X

 Pack: 1 carton, G.W.: 12KGS, Meas.: 48*48*31.5CM
