Mikroskop fluorescence

Her er 4  modeller i XJF-serien og 7 i BS-serien   Alle priser eks. MVA

 XJF100

FJX100B  Kr. 37900,-         FJX100T Kr. Kr. 43.200,-

  Aspherical Kohler illumination which will  increasing brightness.
  Super wide field WF10X/25 eyepiece, with high NA Plan APO fluorescence objective,
  give a crisp imagine.  Six wave band which B, G, BV, Y, V, U can be switched.
  The conventional transmission observation can be proceeded.
   Humanized configuration design, convenient operation system will be your satisfied decision


Specification
XJF10B
XJF100T
Optical System
Infinity optical system F=200mm
●
●
Viewing Head
Seidentopf binocular, interpupillary distance: 55~75mm
●

Seidentopf trinocular, interpupillary distance: 55~75mm

●
Eyepiece
WF10X/22mm
●
●
WF16X/17mm
○
○
WF20X/12.5mm
○
○
Nosepiece
Sextuple
●
●
Objective
Plan Apochromatic Fluorescent objective 4X/0.15 WD=21.60mm
●
●
Plan Apochromatic Fluorescent objective 10X/0.35 WD=2.90mm
●
●
Plan Apochromatic Fluorescent objective 20X/0.60 WD=1.50mm
●
●
Plan Apochromatic Fluorescent objective 40X(S)/0.70 WD=0.60mm
●
●
Fluorescent Objectives 100X (dry) / N.A.0.9
○
○
Plan Objective 4X,10X, 20X, 40X(S), 60X(S), 100X(S,O)
○
○
Stage
Double layers  Stage size: 180×160mm,
Moving range: 76×50mm
●
●
Focusing
Coaxial coarse and fine focusing adjustment with rack and pinion mechanism Fine focusing scale: 0.002mm
●
●
Condenser
NA=1.25 Abbe condenser with iris diaphragm and filter
●
●
Illumination
Transmission light:halogen bulb 12V 30W
Adjustable brightness
●
●
Epi-Fluorescent illumination: 220V(110V) 100W
Digital display mercury lamp constant power
●
●
Reflected Light Source

Excitation
Dichroic Mirror
Barrier Filter
●
●
G
EX510-560
DM575
BA590
●
●
B
EX450-490
DM505
BA520
●
●
BV
EX400-440
DM455
BA470
●
●
V
EX380-420
DM430
BA450
●
●
U
EX330-380
DM400
BA420
●
●
Y
EX540-580
DM595
BA600-660
●
●






XJF201 med kameraport
http://kozo-optics.com/upload/product/20130506091217.jpg
Pris Kr. 20.800,-

XJF200 Epifluorescent microscope is used for fluorescence microscopy and transmitted field observation. It is equipped with infinity plan
achromatic objectives and wide field eyepieces, have clear picture and wide view field. It is the ideal instrument in biology, cytology, oncology,
genetics, immunology etc. It also can be used in scientific research, universities, medical treatment, epidemic prevention etc.

Features

▲ With wide field eyepieces and infinity plan achromatic objectives, the field of view is widely and clear

▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm

▲ 20W 6V halogen lamp with electronic dimmer

Spesifikasjon
Model XJF200
Eyepiece Wide field WF10X(|μ20mm)
Objective Infinity plan achromatic Objectives PL 4X/0.10
Infinity plan achromatic Objectives PL 10X/0.25
Infinity plan achromatic Objectives PL 40X/0.65(Spring)
Infinity plan achromatic Objectives PL 100X/1.25(Spring, oil)
Eyepiece tube Trinocular (Inclination of 30°)
Focus system Coaxial coarse/fine focus, with tensional adjustable and up stop minimum division of fine focusing: 2μm.
Nosepiece Quadruple(Backward ball bearing inner locating)
Stage Double layer mechanical (Size:210mmX140mm, Move range: 75mmX50mm)
Abbe condenser N.A.1.25 Rack & pinion adjustable
Filter Blue filter
Frosted filter
Collector For halogen lamp
Light source 6V 20W Halogen lamp ,adjustable brightness
Reflected fluorescence system Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm
Fluorescence filter system UV exciton wavelength:330~400nm
Fluorescence filter system V exciton wavelength:395~415nm
Optional accessories
  Sort/Technique parameter
Eyepiece WF16X(|μ11mm)
Dividing 10X(|μ20mm),0.1mm/Div
Objectives Infinity plan achromatic 20X/0.40
Eyepiece tube Binocular(Inclination of 30°)
Nosepiece Quintuple(Backward ball bearing inner locating)
Filter Green filter
Yellow filter
Phase contrast unit Eyepiece Centering telescope
Objectives Infinity phase contrast plan achromatic 10X/0.25 PHP
Infinity phase contrast plan achromatic 20X/0.40 PHP
Infinity phase contrast plan achromatic 40X/0.65 PHP(Spring)
Infinity phase contrast plan achromatic 100X/1.25 PHP(Spring, oil)
(PH) Turnplate phase contrast condenser
(PH) Turnplate phase contrast condenser
Flashboard phase contrast condenser
Pull board phase contrast condenser
CCD adapter 0.4X
0.5X
1X
0.5X with dividing 0.1mm/Div
Camera With USB & video output
With USB output
With video output
Digital camera adapter CANON digital camera adapter(A610,A620,A630,A640)
Photograph unit 2.5X/4X Change over photograph attachment with 10X viewing eyepiece
4X Focusing photograph attachment
MD Adapter
PK Adapter


XJF300 B og T
http://kozo-optics.com/upload/product/20100105/20100105015938.jpg
Priser:   XJF300B  Kr. 23.500,-     XJF300T  Kr. 24300,-

Stable, sharp imagine provider—XJF300

XJF 300 series is used in Fluorescence microscopic observation and transmisstion light illumination.
It is ideal instrument used for the research of biology, cytology, oncology, genetics, Immunology, apply to scientific research, universities, medical and epidemic prevention.

XJF 300 is Infinity optical system, equip with infinity plan objectives, the optical system provides a high quality imaging.
Can observe fluorescence and reflected light illumination in the same time.




Specification
XJF300B
XJF300T
XJF300MU
Optical System
Infinity optical system F=180mm
●
●
●
Head
Siedentopf binocular head, inclined at 30 ° , rotatable 360°, interpupilary distance 50~75mm
●


Siedentopf trinocular head, inclined at 30 °, rotatable 360°, interpupilary distance 50~75mm, light distribution: 0:100

●
●
Eyepiece
WF10X/20mm
●●
●●
●●
WF16X/13mm
○
○
○
WF10X/20mm (Reticule 0.1mm)
○
○
○
Nosepiece
Quintuple
●
●
●
Objective
Plan Achromatic 4X/0.10
●
●
●
Plan Achromatic 10X/0.25
●
●
●
Plan Achromatic 20X/0.40 (S)
●
●
●
Plan Achromatic 40X/0.65 (S)
●
●
●
Plan Achromatic 100X/1.25 (S,O)
●
●
●
Mechanical Stage
Double layers size: 190×140mm
Travel: 55×78mm
Coaxial coarse and fine focusing knobs
●
●
●
Condenser
Abbe N.A. 1.25 (Iris Diaphragm)
●
●
●
Darkfield Device
Darkfield Condenser(Dry), for 4X to 40X objective



Darkfield Condenser(Wet), for 100X Objective



Koehler Illumination
6V 20W Halogen Lamp
●
●
●
Fluorescence Set
Fluorescence illuminator (B,G)
●
●
●
100W Mercury bulb house
●
●
●
100W Mercury bulb power source
●
●
●
Centering objective
●
●
●
110V/220V 100W mercury bulb spare: 1 pc
●
●
●
5A fuse spare: 1 pc
●
●
●
Reflected Light Source

Excitation
Dichroic Mirror
Barrier Filter
●
●
●
B
400-490
DM 505
BF 520
G
460-550
DM 575
BF 590
UV
400-440
DM450
BF470

○
●
V
380-420
DM430
BF450

○
●
2 A Fuse
Spare: 2 pc
●
●
●
Filter
Blue
●
●
●
C-mount
0.5X, 1X
○
○
○

 Pack:1 carton, G.W.: 23KGS,  N.W.: 15.5KGS, Meas.: 99*34*44 cm

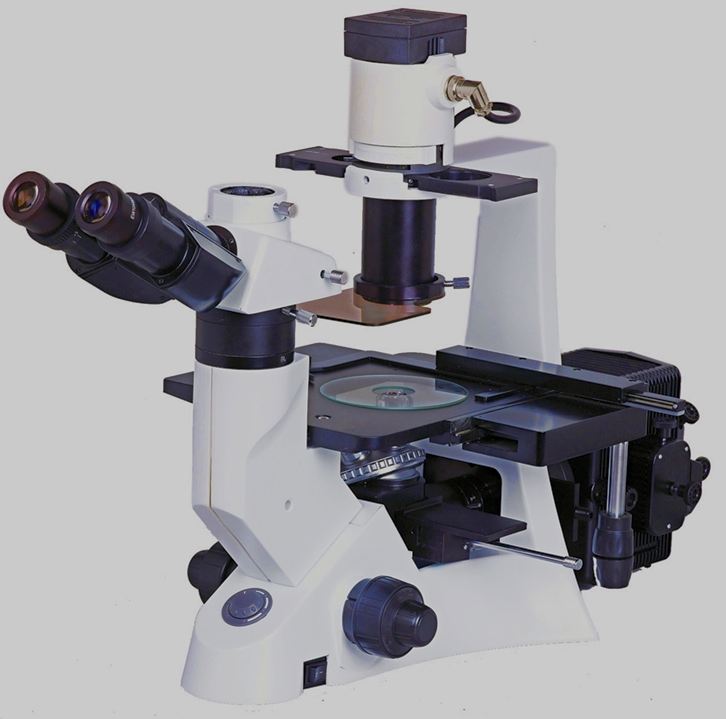

XJF401B og XJF402T

Pris:  XJF401  u/ kameraport   55.800,-   XJF402 m/ kameraport  Kr.56.600

 XJF400 Inverted & Reflected Fluorescence Microscopes is composed with inverted microscope and
 reflected fluorescence microscope, equipped with long working distances plan achromatic objectives
  and    wide field eyepieces, you can use long working distance phase contrast
 objectives and special long working distance condenser with phase contrast unit when inverted
 observation, and change the fluorescence excitation system freely.
 The microscope has clear image, wide field, compact framework, beautility sculpt and comfortable
 operation etc.

  It's mainly applied to observe the living cell and tissue, liquid and deposits etc, also to observe transparent
  living without staining and fluorescence slice up,
  it is the ideal instrument for researching in biology, cells cytology, oncology, genetics, immunology etc.
  The  microscope can be used for scientific researching, medical treatment, epidemic prevention and
  animal husbandry etc.

Features
▲ With wide field eyepieces, Long distance plan achromatic objectives the field of view is widely and clear.
▲ Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm.
▲ The mechanical stage movement mechanism can be taken out.
▲ Equipped with phase contrast unit, include long working distance condenser, phase contrast objective
and centering telescope
▲ Equipped with fluorescence unit, include four group of fluorescence filter.
▲ 6V 30W halogen lamp transmission illumination with brightness control. 100W high voltage mercury lamp,
  with outside power supply unit.

Spesifikasjon   XJF400
Eyepiece Wide field eyepiece WF10X(|μ20mm)
Objective Long working distance plan achromatic objectives PL L 10X/0.25
Long working distance plan achromatic objectives PL L 25X/0.40
Long working distance plan achromatic objectives PL L 40X/0.60
Long working distance plan achromatic phase contrast objective PL L 10X/0.25 PHP2
Long working distance plan achromatic phase contrast objective PL L 25X/0.40 PHP2
Long working distance plan achromatic phase contrast objective PL L 40X/0.60 PHP2
Eyepiece tube Trinocular (Inclination of 30°, 100% image light for photography capable)
Focus system Coaxial coarse/fine focus system, with tensional adjustable and up stop, minimum division of fine focusing: 2μm
Nosepiece Quintuple (Ball bearing inner locating)
Stage Double layer mechanical (Size: 224mmX208mm, moving range: 112mmX79mm)
Filter Frosted filter
Blue filter
Green filter
Shelf of specimen Match to install |μ68mm or 77mmX29mm culture utensil
Match to install 82mmX57mm culture utensil
Match to install 128mmX85mm 96 holes culture utensil
Reflected fluorescence system Mercury lamp house 100W/DC
Power supply unit:AV:110V or 220V
Fluorescence filter system B exciton wavelength:420~485nm
Fluorescence filter system G exciton wavelength:460~550nm
Fluorescence filter system UV exciton wavelength:330~400nm
Fluorescence filter system V exciton wavelength:395~415nm
Turnplate phase contrast unit Centering telescope
Condenser Rack & pinion adjustable, NA=0.4,working distance: 50mm



Optional accessories

Name

Sort/Technique parameter

Eyepiece

Wide field WF16X(|μ11mm)

Dividing 10X (|μ20mm), 0.1mm/Div

Condenser

Ultra long working distance,W.D.:70mm

Filter

Yellow filter

Fluorescence power supply

100W fluorescence power supply(Wide voltage range and constant power and calculagraph)

Phase contras

Compensation phase contrast

CCD adapter

0.4X

0.5X

1X

0.5X with dividing 0.1mm/Div

Camera

DV-1(With USB & video output)

DV-2(With USB output)

DV-3(With video output)

Digital camera adapter

CANON digital camera adapter(A610,A620,A630,A640)

Photograph unit

2.5X/4X Change over photograph attachment with 10X viewing eyepiece

4X Focusing photograph attachment

MD Adapter

PK Adapter





XJF500
Easiest Manipulation, Steady Framework, Flexible Upgrade
Four wave brand at one time


Pris   XJF500  Kr. 43500,-

 Meet your applications for observations of phase contrast, fluorescence, polarization, digital camera and CCD adapter easily.
 Can be work with homothermal heat stage, patch clamp, assistant stage harmonious. Also can provide optional 96 NUNC.
 72mm ultra-long working distance condenser provides enough space for culture dish.
 Humanization machine design can make you work easily for a long time. Excellent steady quality can improve your work  efficiency.
 Can be configured with four kinds of fluorescence excited parts, which is UV, V, B and G.
 Can change the observation mode between fluorescence and bright field. Fluorescence device is equipped with 100w mercury lamp box.
 Clear imaging, jarless quality, XJF 500 inverted biological microscope is the potent guarantee of your success.



Specifications

XJF500
Optical System
Infinity Optical System F=200mm
●
Viewing Head
Siedentopf trinocular head, interpupillary distance 52~75mm, 45°inclined,diopter adjustable
●
Eyepiece
WF10X/20mm, High eye-point up to 21mm
●●
WF10X/22mm, High eye-point up to 21mm
○
WF16X/14mm
○
WF10X/20mm (Pointer), High eye-point up to 21mm
○
WF10X/22mm (Pointer), High eye-point up to 21mm
○
WF10X/20mm (Reticule), High eye-point up to 21mm
●
WF10X/22mm (Reticule), High eye-point up to 21mm
○
Nosepiece
Quintuple
●
Long Work-distance Objectives
Plan Achromatic 4X/0.13  WD=12.86mm
○
Plan Achromatic 10X/0.25  WD=9.67mm
●
Plan Achromatic 20X/0.40  WD=7.97mm
●
Plan Achromatic 40X/0.60  WD=3.76mm
●
Positive Phase-Contrast Objevtives
Plan Achromatic 10X/0.25  WD=9.67mm
○
Plan Achromatic 20X/0.40  WD=7.97mm
●
Plan Achromatic 40X/0.60  WD=3.76mm
○
Negative Phase-Contrast Objectives
Plan Achromatic 10X/0.25  WD=9.67mm
○
Plan Achromatic 20X/0.40  WD=7.97mm
○
Plan Achromatic 40X/0.60  WD=3.76mm
○
Stage
Fixed stage: 240×260mm, low-position co-axial flexible adjusting handle, travel: 135×85mm
●
Slide Plate(Φ118mm), replaceable
●
Slide Plate(76×26mm, Φ60), replaceable
●
Mechanical stage: 350×208mm, X/Y travel: 50×50mm, low-positioned co-axial flexible adjusting handle.
○
Transmited light Illumination
72mm extreme long work distance condenser, NA=0.3, with iris diaphragm, 6V 30W halogen lamp house, filter jack
●
Phase-contrast slide, makes it easy to change between 10X, 20X, 40X phase-contrast and brightfield observation.
●
6V 30W Osram halogen lamp
●
External power, wide voltage (100V / 240V)
●
Fuse tube: 250V 3.15A Φ5×20
●
Blue filter (Φ34)
●
Green filter (Φ34)
●
Yellow filter (34)
●
Nosepiece
Quintuple, Inward facing.
●
C-Mount
1X
○
0.5X
●
0.25X (Fit 1/3"CCD)
○
Digital Camera Joint
(Please advice your digital camera brand and model in advance)
○
Reflected Flourescence Attachment
DC Hg Fluorecence lamphouse 100W
●
Mercury lamp 100W
●
Mercury lamp 100W (Osram)
○
Filter turret
●
Iris aperture adjusting handle
●
DC Hg Power source house 100W
●
Fuse tube: 250V 5A Φ5×20
●
UV Excitaion Filter (I Grade, imported)
○
V Excitation Filter (I-Grade,imported)
○
B Excitation Filter (I-Grade,imported)
○
G Excitation Filter (I-Grade,imported)
○
UV Excitaion Filter (C-Grade,made in China)
○
V Excitation Filter (C-Grade,made in China)
○
B Excitation Filter (C-Grade,made in China)
●
G Excitation Filter (C-Grade,made in China)
●
Dust Cover

●
Operation Manual

●
Allen Screw Driver
Φ2mm
●
Φ2.5mm
●
Φ3mm
●
Power Wire
CE Certified
●
Package
Inner: Foam, Plastic Bag;
Outer: Carton
●
















FJX900


 XJF900B : Kr. 28.800,-      XJF900T: Kr. 29.400,-

Advanced Laboratory Insrument-- XJF900
  XJF900 series upright fluorescence microscope is a kind of cost-effective advanced laboratory microscope
 which is designed for  the area of medicine clinical and biology research.
 Equipped with infinity plan achromatic optical system, chromatic aberrations and curvature of field are both
 ideally corrected over the field of view.  Four wave brand at one time.

    Specification
    XJF900B
    XJF900T
    Optical System
    Infinity Optical System F=200mm
    ●
    ●


    Viewing Head
    Seidentopf binocular ad, interpupillary distance 52~75mm, 30°inclined, 360° rotatable, diopter adjustable.
    ●

    Seidentopf trinocular head, interpupillary distance 52~75mm, 30°inclined,trinocular light is split 20/80 by a high quality prism, diopter adjustable.

    ●
    Eyepiece
    WF10X/20mm, High eye-point up to 21mm.
    ●●
    ●●
    WF10X/22mm, High eye-point up to 21mm.
    ○
    ○
    WF16X/14mm
    ○
    ○
    WF10X/20 (Pointer), High eye-point up to 21mm.
    ○
    ○
    WF10X/22 (Pointer), High eye-point up to 21mm.
    ○
    ○
    Reticule eyepiece: Cross WF10X/20mm
    ○
    ○
    Reticule eyepiece: Cross WF10X/22mm
    ○
    ○
    Electric
    110V/220V, 50/60Hz
    ●
    ●
    Focusing
    Coaxial coarse and fine focusing knob, height adjustable.
    ●
    ●
    Centering Telescope
    CTE
    ○
    ○
    Objectives
    Plan Achromatic 2X/0.06, WD=3.55
    ○
    ○
    Plan Achromatic 4X/0.10, WD=12.31
    ●
    ●
    Plan Achromatic 10X/0.25, WD=5.03
    ●
    ●
    Plan Achromatic 20X/0.40, WD=2.71
    ○
    ○
    Plan Achromatic 40X/0.65, WD=0.72 (S)
    ●
    ●
    Plan Achromatic 60X/0.80, WD=0.69 (S)
    ○
    ○
    Plan Achromatic 100X/1.25 (S,Oil), WD=0.17
    ●
    ●
    Phase-Contrast
    (positive or negative)Objectives
    PH Plan Achromatic 10X/0.25, WD=5.03
    ○
    ○
    PH Plan Achromatic 20X/0.40, WD=2.71
    ○
    ○
    PH Plan Achromatic 40X/0.65, WD=0.72 (S)
    ○
    ○
    PH Plan Achromatic 60X/0.80, WD=0.69 (S)
    ○
    ○
    PH Plan Achromatic 100X/1.25 (S,O), WD=0.17
    ○
    ○
    Phase-Contrast Slide
    10X PH
    ○
    ○
    20X PH
    ○
    ○
    40X PH
    ○
    ○
    60X PH
    ○
    ○
    100X PH
    ○
    ○
    Condenser
    Multi-Purpose Phase-contrast Condenser: NA:1.25, Phase-contrast observation from 10X to 100X and Dark-field observation from 10X to 40X is allowed
    ○
    ○
    Abbe condenser: NA =1.25, with iris diaphragm, with socket to accommodate PH-slide. Condenser center adjustable, color-coded diaphragm scale markings cooresponded with the objectives of different powers.
    ●
    ●
    Dark Condenser (Dry)
    ○
    ○
    Stage
    Double layers stage: 156×138mm platform, with X/Y travel of 76×54mm by low-positioned X/Y coaxial control knob, with scale mark and specimen-slide clip, enough space to hold 2 specimen-slide.
    ●
    ●
    Double layers stage: 179(205)×175mm platform, with X/Y travel of 75×50mm by low-positioned X/Y coaxial control knob, with scale mark and specimen-slide clip, enough space to hold 2 specimen-slide.
    ○
    ○
    Nosepiece
    Quadruple, inward
    ●
    ●
    Quintuple, inward
    ○
    ○
    Illumination Kohler
    With field diaphragm
    ●
    ●
    Electrical Parts
    6V 20W halogen bulb: Input: 100V/240V~0.5A, 47~63Hz, Output: 6V 3.4A, Fuse: 3.15A, 250V, FΦ5×20mm, halogen Bulb Socket: G4
    ●
    ●
    6V/30W halogen bulb: Input: 100V/240V~0.5A, 47~63Hz, Output: 6V 3.4A, Fuse: 3.15A, 250V, FΦ5×20mm, halogen bulb socket: G4
    ○
    ○
    For 3W LED bulb
    ○
    ○
    C-Mount
    1X

    ○
    0.5X

    ●
    0.25X

    ○
    Digital Camera Adapter
    SD2

    ○
    Digital Camera Joint
    (Please advice your digital camera brand and model in advance)

    ○
    Filter
    Blue
    ●
    ●
    Green
    ○
    ○
    Yellow
    ○
    ○
    Grass Glass
    ○
    ○
    Filter Holder
    Filter holder: (Attached to the Keholer) for more than one filter.
    ●
    ●
    Polarization kits
    Analyzer slide
    ○
    ○
    Polarization slide
    ○
    ○
    Reflected Fluorescence Attachment
    DC Hg fluorescence lamp house 100W
    ●
    ●
    Mercury lamp 100W
    ●
    ●
    Mercury lamp 100W (Osram)
    ○
    ○
    Filter turret
    ●
    ●
    UV Shield
    ●
    ●
    DC Hg power source house 100W
    ●
    ●
    Fuse 250V/5A Φ5×20
    ●●●
    ●●●
    UV Excitation Filter (I Grade)
    ○
    ○
    V Excitation Filter (I-Grade)
    ○
    ○
    B Excitation Filter (I-Grade)
    ○
    ○
    G Excitation Filter (I-Grade)
    ○
    ○
    UV Excitation Filter (C-Grade)
    ○
    ○
    V Excitation Filter (C-Grade)
    ○
    ○
    B Excitation Filter (C-Grade)
    ●
    ●
    G Excitation Filter (C-Grade)
    ●
    ●
    Illumination
    6V 20W Osram halogen bulb
    ●
    ●
    6V 30W Osram halogen bulb
    ○
    ○
    3W LED bulb
    ○
    ○
    Immerse Oil
    8ml
    ●
    ●
    Allen Screw Driver
    Φ2mm
    ●
    ●
    Power Line
    1.8m
    ●
    ●
    Package
    Inner package: foam, plastic bag; Out Package: Carton
    ●
    ●




    BS-7000A Upright Fluorescent Biological Microscope


    Pris 7000A: Kr. 52800,-

    INTRODUCTION:BS-7000A fluorescence microscope uses ultraviolet as the light source, objects which are radiated then fluoresce, and then the shape of an object and its location can be observed under the microscope.

    1.       Excellent fluorescent image with high resolution fluorescent objectives.

    2.       Protect the light leak with advanced lamp housing.

    3.       Perfect image with infinite plan fluorescent objectives.

    4.       More stable power supply, digital display and timer

     Spesifikasjon


     BS-7000B Inverted Fluorescent Biological Microscope


    Pris 7000B: Kr. 48600,-

    INTRODUCTION:BS-7000B Inverted Fluorescent Biological Microscope is specifically designed for the observation of cell culture. Infinite Optical System gives excellent Optical performance. Excellent high resolution fluorescent objectives are optional to generate high quality fluorescent images. This microscope can be your best assistant in laboratory research.

    Spesifikasjon


     BS 7020

    Pris 7020: Kr. 51200,-
    Spesifikasjon kommer





    403-serien levers i 4 modeller:
    Med og uten kameraport og fluorescence
    SE SPESIFIKASJON NEDENFOR.


    403T: Kr. 18800,-
    403AT: Kr. 17300.-
    403Y (Fluorescence): Kr. 28900.-
    Se Spesifikasjon

    Standard Specifications:

    1) Viewing Head: Compensation Trinocular Head,Inclined at 45°,Interpupillary distance 50-75mm
    2) Eyepieces: Extra Wide Field Eyepiece WF10X/22,Centering telescope
    3) Objectives: Longe working distance plan achromatic objectives 4X ,40X(S)
    4) Long working distance: Plan phase contrast objective 10X , 20X
    5) Nosepiece: Quadruple Nosepiece
    6) Stage: Double layer Mechanical Stage , Size:242X172mm
         Moving range75X50mm,central stage:    Φ    110mm
    7) Focus:  Coaxial Coarse and fine Adjustment with rack&pinion mechanism ,
        fine focusing scale value 0.002mm,with tension adjustment.
    8) Condenser: Abbe N.A.=0.3 Condenser ,long working distance up to 75mm
    9) Sliding plate: Center of phase contrast ring plate adjustable
    10) Filters: Blue ,green ,yellow and frosted glass
    11) Checking tool: 0.01mm micrometer
    12) Illumination: Input AC2201/110V 12V/30W Halogen lamp ,Brightness adjustable



    Biological Fluorescent Micorsocpe :

    403Y inverted fluorescent microscope is composed of inverted microscope and Epi-fluorescent microscope. The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish. Epi-fluorescent device applies to the fluorescent microscopy.
    It is equipped with long wording distance plan achromatic objectives, wide field eyepiece, binocular observation head, phase contrast kit and phase contrast objectives. The transparent alive objects can be observed without dyeing.
    Epi-fluorescent microscope adopts to Epi-illumination excitation to make fluorescent image clear. Long working distance condenser can contain higher culture dish and specimen.
    This equipment is specially suitable for micro research of living cells     ＆ university, medical treatment, epidemic prevention department and farming & stock raising,etc.

    Epi-fluorescent attachment:
    1) Epi-fluorescent light: Blue ,and Green exciting light filter system,ordinary light system
    2) Lamp: 100W HBO Ultra high pressure voltage spherical mecury lamp
    3) Protection barrier: Barrier to resist the ultraviolet light
    4) Power supplier: AC220V/110V interchangeable ,digital play
    5) Objective: Fluorescent free objectives 4X 10X 40X(S) 100X(S.OIL)
    6) Immersion oil: Fluorescence free oil.

    Optional accessories: Ultraviolet and Violet excitation system.





    Spesifikasjon alle 403 modeller:

    Model

    403

    403T

    403A

    403AT

    Viewing head

    Compensation free Binocular Head .Inclined at 4 5 °             ( 50mm -75mm )

    ●



      ●



    Compensation Free Trinocular Head .Inclined at 45 °           ( 50mm -75mm )

    　

    ●



    ●

    Eyepiece

    WF10X/ 20mm

    ●

    ●





    WF10X/ 23mm

    　

    　

    ●

    ●

    WF10X/ 18mm with Cross graduation of 0.1mm scale

    ○

    ○

    ○

    ○

    Objective

    Long working distance plan-objective

    LWDPL4X/0.1W.D .25mm

    ●

    ●

    　

    　

    LWDPL10X/0.25W.D .11mm

    LWDPL20X/0.4W.D .8mm

    LWDPL40X/0.6W.D. 3.8mm

    Long working  Distance infinity plan-objective

    LWDPL4X/0.1W.D .25mm





    ●

    ●

    LWDPL10X/0.25W.D .12mm

    LWDPL20X/0.4W.D .10mm

    LWDPL40X/0.6W.D .7mm

    Long working distance phase contrast objective

    LWDPL10X

    ○

    ○

    ○

    ○

    LWDPL20X

    ●

    ●

    ●

    ●

    LWDPL40X

    ○

    ○

    ○

    ○

    Stage

    Double layers mechanical stage

    ●

    ●

    ●

    ●

    Stage size: 242mmx 172mm

    Central stage: Φ110mm

    Moving range: 75mm × 50mm

    Condenser

    N.A0.3Abbe condenser W.D .75mm

    ●

    ●

    ●

    ●

    Focusing

    Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm

    ●

    ●

    ●

    ●

    Phase contrast sliding plate

    Center of phase contrast ring plate adjustable

    ●

    ●

    ●

    ●

    Centering telescope

    Centering telescope

    ●

    ●

    ●

    ●

    Filter

    Blue, green, yellow and frosted glass

    ●

    ●

    ●

    ●

    Light source

    Halogen bulb12V/30W

    ●

    ●

    ●

    ●

    Adjustable brightness

    ●

    ●

    ●

    ●

    Fluorescence attachment

    B. G Wave band ,220V(110V)/100W Mercury lamp

    ○

    ○

    ○

    ○

    Photograph attachment

    Photograph connecting tube, adapter with MD or PK mount ,4X photograph eyepiece

    ○

    ○

    ○

    ○

    Digital Eyepiece

    1.3 or 3.0Mega pixels CMOS Digital eyepiece

    ○

    ○

    ○

    ○

                             ● standard outfit.        ○ optional parts.
