3MP Komplett Feltmikroskop

DM9000 er et komplett mikroskopsystem for feltarbeid, bestående av et raskt 3MP USB-kamera som styres fra PCen,
Komplett stativ inklusiv holdebrett for PC,  oppladbart batteri og Softwarepakke med måling.

 PRIS PÅ FORESPØSEL: admin@teknika.no


Klikk for stort bilde

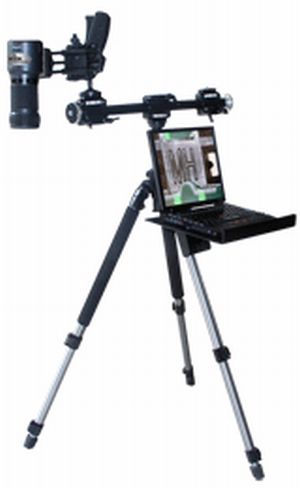

Komplett stativ

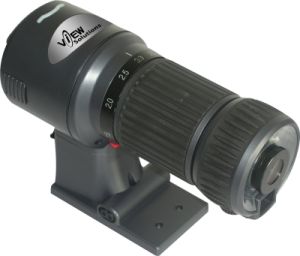

Sort 3MP kamera     Klikk for stort bilde


LED-lys rundt linsen



Tilknyttet PC






Kamera i bruk på labben. Stabil stand.  illuminatorboks & dual pipes
er ekstrautstyr.














































   1 Objektivlinse (1X) medfølger

Optical Datasheet (Based on 14" Monitor)

Objective Lens

Working Distance (mm)

Mag.

FOV (mm)

0.3X

331

4.7X-30X

76.2-11.9

0.5X

198

7.8X-50X

45.7-7.1

0.75X

131

11.7X-75X

30.5-4.7

1X

96

15.6X-100X

22.9-3.6

1.5X

63

23.3X-150X

15.2-2.4

2X　

46

31.1X-200X

11.4-1.8

5X

44.5

77.8X-500X

4.6-0.7

10X

34

155.6X-1000X

2.3-0.4















Picture Preview P/N Name Description

 MV500010 Digital Video Microscope Body 0.7-4.5X Zoom body, zoom ratio 1:6.5, provides a USB2.0 Video output. White paint.

 MV500011 Digital Video Microscope Body 0.7-4.5X Zoom body, zoom ratio 1:6.5, povides a USB2.0 Video output. Dark Gray paint.

 MV501111 5X Metallurgical Objective Lens 5X Plan achromatic objective, parfocal distance 95mm, working distance 44.5mm, focal length
40mm, N.A. 0.13. Depth of View:14μm; Field of View: Φ4.8mm(Φ24lens); Resolution: 2μm,
for DM microscope body.
MV501112 10X Metallurgical Objective Lens 10X Plan achromatic objective, parfocal distance 95mm, working distance 34mm, focal length
21mm, N.A. 0.28. Depth of View: 3.5μm; Field of View: Φ2.4mm(Φ24lens), Resolution:1μm,
for DM microscope body.

 MV501122 Polarizer For DM Video Zoom Microscope

 MV591110 LED Side Light For DM Video Zoom Microscope

 MV591120 Rechargeable Battery 4.8V 2200mA/h Nickel hydrogen battery

 MV591121 Battery Charger Input Voltage:100-240V 50/60HZ; Output Voltage: 6.0-6.5V; Current: 250-350mA.

 MV591131 Carrying Case Case Dimensions: 390mm(L)×260mm(W)×140mm(H)






























!
