Gemmologiske Mikroskop

Vi presenterer her 6 gemmologiske mikroskop i 100, 200 og 300-serien


  Gem100-serien:   Gem101 og Gem102


 Gem101:  Kr. 10900,-         Gem 102:  Kr. 11700,-

GEM100--- Greenough Optical System

 Microscope is Greenough Optical System with zoom range 7X~45X.
 With both bright field and dark field observation, the GEM100 is a versatile inspection
 and diagnosis system for gems ranging from jadeite to emerald to diamond.
 Further assisting the observation of the diamond is the standard 6000K-gooseneck
 fluorescent incident to true test for the shimmer of the diamond and finishing through simple   repositioning of the light.
 0°~45° designed for comfortly user practicality.
 The perfect option is  the storefront with its 360° rotary base.

     Spesifikasjon Gem101 og 102:

    Specification
    GEM101
    GEM102
    Optical System
    greenough Optical System
    ●
    ●
    Viewing Head
    Binocular, 45°, 360° rotatable
    ●
    ●
    Optical Body
    Magnification: 0.7X~4.5X




    ●

    Zoom Ratio: 1:6.5
    Zoom Range: 7X~45X
    High Point and wide Angel Eyepiece WFH10X/22mm
    Working Distance: 110mm
    Interpupillary Distance: 54~76mm
    Diopter Adjustment: ±5°
    Transmission Illumination: Wide Voltage Input 85V~265V,
    Output: 6V 20W Halogen Lamp
    Magnification: 0.67X~5.0X






    ●
    Zoom Ratio: 1:7.5
    Zoom Range: 6.7X~50X
    High Point and wide Angel Eyepiece WFH10X/23mm
    Working Distance: 110mm
    Interpupillary Distance: 54~76mm
    Diopter Adjustment: ±5°
    Transmission Illumination: Wide Voltage Input 85V~265V,
    Output: 6V 20W Halogen Lamp
    Bright&Dark Field
    Bright&Dark Field illumination, Iris diaphragm Aperture from 41~ 2mm, can adjust the beam of light! Convenient switch form Bright field to dark field
    ●
    ●
    Reflecting Illumination
    9W fluorescence illumination, qualifies for diamond illumination: colour temperature:6000K rendering index: 85 Adjustable tube can have a suitable angle
    ●
    ●
    Focus Distance
    125mm
    ●
    ●
    Working Stage
    There are the fixing holes of gem clamp the both sides of the stage, you can adjust it according to your choice.
    ●
    ●
    Arm
    Rotatable from 0~45°, so you can adjust the height and angle of observation spot and operate more conveniently and comfortably.
    ●
    ●
    Steel Clamps
    Steel claps with appropriate rigidity, less Shade at the lumbar of the diamond, which can help to observe in all directions.
    ●
    ●
    Lamp Changing
    Device for changing the lamps, very convenient for changing the Lamp
    ●
    ●










































































































































Gem200-serien:


            GEM200B       Gem 200T

   Gem200B:  Kr. 11400,-            Gem 200T:  Kr. 11900,-

     GEM200 -high definition and resolution rate of solid image

 The structure of trinocular viewing body provides special interface.
 The connection method of lamp tube is easy to adjust the angle of illumination.
 125mm working distance makes it can observe for different size gem and sample.
 With Bright, Dark viewing field Illumination, which provides two different illumination methods
  with Light aperture adjustable diaphragm range 41~2mm.
 The zoom range is from 7X~45X.

Specification
GEM200B
GEM200T
Head
Binocular
●

Trinocular

●
Zoom Magnification
7X~45X
●
●
Working Distance
95mm
●
●
Eyepiece
WF10X/23mm
●
●
Interpupilary Distance
55~75mm
●
●
Auxiliary objective
Working distance(mm)
Eyepiece WF10X/23mm


Magnification
Field(mm)


0.75X
105
5.25~33.75X
43.81~6.81
○
○
1X
95
7~45X
32.86~5.11
●
●
1.5X
47
10.5~67.5X
21.91~3.41
○
○
2X
33
14~90X
16.43~2.56
○
○
 Pack: 2 cartons G.W.:10.6   N.W.:8.5kg  Meas.:38* 33 *48cm & 30*30*23cm

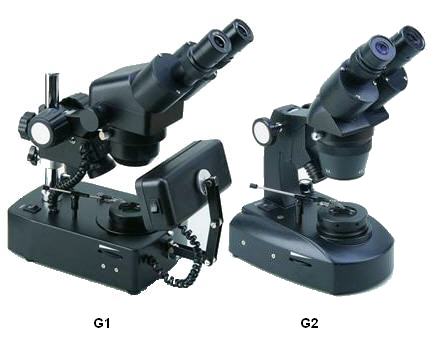

Gem300-serien:



         Gem300-G1:  Kr. 4200,-                  Gem300-G2:  Kr. 3700,-

 GEM300------Portable Easy Microscope.
  Economy Gem microscope with two system of optional magnification range and 70~90mm
  working distance.
  Equipped with dark field illumination which can satisfy your needs for the basic inspection
  of jeweler, diamond and jade.
  The objectives magnification like 1X, 2X, 3X, 4X are chosen with the two.

   Spesifikasjon Gem300-G1  og Gem 300-G2:
Specification
GEM300-G1
GEM300-G2
Viewing Head
Binocular, Rotatable 360°
●
●
Trinocular, Rotatable 360°
○

Eyepiece
WF5X/16mm
○
○
WF10X/20mm
●
●
WF15X/15mm
○
○
WF20X/10mm
○
○
Objective
1X~4X
●

0.7X~3.6X
○

2X/4X

●
1X/3X

○
1X/2X

○
Working Distance
90.5mm
●

86mm (when zoom range 0.7x~3.6x)
○

75mm (when objective 1x)

○
91mm (when objective 2x)

○
69mm (when objective 3x)

○
70mm (when objective 4x)

○
Incident Light
Halogen Lamp 12V 10W
●
●
Fluorescent 12V 10W
●

Transmission Light
Halogen Lamp 12V 10W
●
●
Accessories
Jewel tweezer
●
●
Dark Field Working Stage with Iris Diaphram
●
●
