Et mikroskop med stor dybdeskarphet (FoD)
|
|
 |

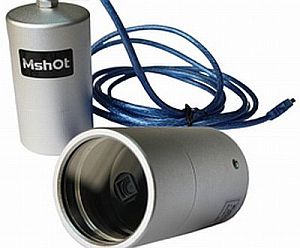

ME10 Camera Specifications
| Sensor | 1/ 2.3" color |
| Pixels Size | 2.2umx2.2um |
| Spectral Response | 400 nm ~ 1000nm |
| Sensitivity | 0.6 V/Lux-sec |
| Scan Mode | Progressive scanning |
| Resolution | 640 x 480, 800 x 600, 1280 x 960, 1600 x 1200 |
| White Balance | Manual/Auto one-touch |
| Exposure Contro | Manual/Auto one-touch |
| Data Interface | USB2.0 |
| Power Supply | USB2.0 |
| Dynamic Range | 50DB |
| Program Control | Image size, quality, brightness, gain, exposure time, contrast, saturation, sharpness |
| Operating Temp. | 0-50' C |
ME10 Features:
- Upgrade for antique identification, security testing, industrial maintenance, etc.
- 2 million dynamic pixels, 5 million static pixels.
- USB2.0 interface realizes high-definition image sharing.
- Multi-stage amplification, up to 180X.
- Image preview, storage and measurement directly in computer.
- Minimum working distance 5cm, large DOF.
- Compact and flexible structure, applicable to laboratory console, production lines etc.
Applications:
- Electronic and precision machinery
- With large DOF and multi-angle observation structure, ME10 makes electronic and precision machinery products observation become easy. Ultra-long
- working distance allows convenient detection of large thickness parts too.
Automotive and metal
Hand-hold option can save time and improve work efficiency, especially when ME10 is used to observe uneven surfaces.
Medical and chemical
Traditional microscope need many times of focusing, when observe uneven surfaces. But ME10 just need one time time.
Printing and identification
High-resolution, high cost-effective and convenient operation features are very suitable to identify print quality, handwriting, jewelry and antiques etc.
Education
ME10 is an ideal device for teaching demonstration and experiment Not only develop children's interest in science and the practical ability, but also ME10 can enrich teaching methods and enhance student's interest in learning.
