Inverte biologiske mikroskop

Alle våre inverte biologiske mikroskop har trinoport for kamera.
Alle priser eks. MVA.



Priser:.  XDJ100: Kr. 18800,-     KXD100P: Kr. 23900,-

KXD100 Inverted Microscope
Finity optical system, provides versatility and high quality images for bright field and phase contrast observation.
Ergonomically designed, constructed with high quality component through the whole microscopes.
 KXD 100 mostly used for observation and research on living cell, tissue, fluid and deposit , especially unstained limpidity living materials.

Specification
KXD100
KXD100PH
Optical System
Finity Optical System F=180mm
Viewing Head
Siedentopf Trinocular Head 45° Inclined

Eyepiece
WF10X/20mm
●●
●●
WF16X/13mm
●●
Reticle Eyepiece 10X/18mm with scale 0.1mm
LWD Objective
LWD Plan Achromatic Objectives 4X/0.10 W.D.=17.5mm
LWD Plan Achromatic Objectives 10X/0.25 W.D.=7.9mm
LWD Plan Achromatic Objectives 25X/0.40 W.D.=5.0mm
LWD Plan Achromatic Objectives 40X/0.65 W.D.=3.0mm
Phase cotrast Objective
LWD Plan Phase Contrast Positive Objectives10X/0.25 W.D.=7.9mm
LWD Plan Phase Contrast Positive Objectives25X/0.40 W.D.=5.0mm
LWD Plan Phase Contrast Positive Objectives40X/0.25 W.D.=3.0mm
Stage
Mechanical Stage: 206×170mm,
Moving Range: 71×77mm
96 Hole Stage: 206×170mm,
Moving Range: 128×80mm
Filters
Blue
Green
Annular Spot
Phase Contrast Annular Spot 25X

Phase Contrast Annular Spot 10X, 25X, 40X

Illumination
Halogen Lamp 6V 20W, Adjustable Brightness
Condenser
Condenser NA: 0.35 (WD45/102mm)
Adapter
C-mount Adapter 1X
Pack: 1 carton, G.W.:15KGS, N.W.:11KGS,Meas.:58.6*58.6*33CM

Note: ● Standard Outfit, ○ Optional

KXD200

Priser:
KXD201: Kr.19200   KXD202:21500  KXD203: Kr. 22800  KXD204: Kr. 23800



KXD200 Inverted Microscopy System provides versatility and high quality images for bright field and phase contrast observation. Ergonomically designed and Constructed with high quality component through the whole microscopes, KXD200 Inverted Microscope is the ideal instrument for micro tissue culture and other advanced applications, widely used in the field of Biology, Microbiology and Immunology Observation ------- Both finity and infinity optical system for Option.

                     Specification
KXD201
KXD202
KXD203
KXD204
Viewing Head
Siedentopf Binocular Head.Inclined at 45° (50~75mm)

 ●

Seidentopf Trinocular Head.Inclined at 45° (50~75mm )

 ●

Eyepiece
WF10X/20mm

WF10X/22mm

Article Eyepiece 10X/0.1mm
Objective
Finity Optical System
LWD Plan Achromatic Objectives 4X,10X, 20X, 40X

Infinity Optical System F=200mm
LWD Plan Achromatic Objectives 4X,10X, 20X, 40X


LWD Plan Phase Contrast Objectives 10X
LWD Plan Phase Contrast Objectives 20X
LWD Plan Phase Contrast Objectives 40X
 ○
Stage
Mechanical stage with the moving scale
Stage size: 242×172mm
Moving range: 75×50mm
Centering ring Stage: Φ110mm
Filters
Blue, green, yellow and frosted glass
Annular Spot
Center of Phase Contrast Annular Spot adjustable
Centering Telescope
Centering telescope
Illumination
Halogen Lamp 12V 30W, Adjustable Brightness
Condenser
Condenser NA=0.3 (WD=75MM)
Optional
Accessories
Fluorescence attachment-- B.G Wave band, 220V(110V)/100W Mercury lamp
Photography attachment-- Photograph connecting tube, adapter with MD or PK mount , 4X photograph eyepiece
KOZO DCM130 digital eyepiece
KOZO DCM300 digital eyepiece

  Pack: 1 carton, G.W.:18KGS,Meas.81*31*47CM
Note: ● Standard Outfit, ○ Optional

KXD500


Priser: KXD500: Kr. 29800,-



KXD500——Clear imaging, easiest manipulation, jarless framework, flexible upgrade, steady quality, KXD500 inverted biological microscope is the potent guarantee of your success.

Excellent universal infinity independent plan achromatic optical system provides you with a high  quality imaging.
KXD500 inverted biological microscope provides a flexible upgrade path to meet your applications for observations of phase contrast, fluorescence, polarization, digital and photographing easily, and also can work with heat stage, patch clip, assistant stage harmonious.
The adapter can connect various kinds of camera and digital observe device.
72mm ultra-long working distance condenser provides enough space for culture dish.
Ergonomic machine design can make you work easily for a long time.
Powerful upgrade space make multifunction easily be got.

Parts
Specifications
KXD500
Optical System
Infinite Plan Optical System F=200mm
Viewing Head
Interpupillary distance 52~75mm,45° inclined,diopter adjustable.
Siedentopf trinocular head which is at the side of the main frame can be worked with digital camera and computer. It doesn't influence the binocular observation.
trinocular light is split 50/50 by a high quality prism.(20/80 is for optional)



WF10X/20, High eye-point up to21mm.
●●
WF10X/22, High eye-point up to21mm.
○○
WF16X/14mm
○○
WF10X/20(Pointer), High eye-point up to21mm.
WF10X/22(Pointer), High eye-point up to21mm.
Reticule eyepiece: CROSSWF10X/20,High eye-point up to21mm.
Reticule eyepiece: CROSSWF10X/22,High eye-point up to21mm.
Nosepiece
Quintuple, Inward facing.
Centering Telescope
CTE
Objectives
Plan Achromatic 4X/0.13  WD=12.86mm
Plan Achromatic 10X/0.25  WD=9.67mm
Plan Achromatic 20X/0.40  WD=7.97mm
Plan Achromatic 40X/0.60  WD=3.76mm
Plan Achromatic Positive Phase-Contras 10X/0.25  WD=9.67mm
Plan Achromatic Positive Phase-Contras 20X/0.40  WD=7.97mm
Plan Achromatic Positive Phase-Contras 40X/0.60  WD=3.76mm
Plan Achromatic Negative Phase-Contrast 10X/0.25  WD=9.67mm
Plan Achromatic Negative Phase-Contrast 20X/0.40  WD=7.97mm
Plan Achromatic Negative Phase-Contrast 40X/0.60  WD=3.76mm
Stage
Fixed stage: 240×260mm, low-position co-axial flexible adjusting handle, moving range: 135mm×85mm
Slide Plate(Φ118mm), replaceable
Slide Plate(76×26mm, Φ60mm), replaceable
Mechanical stage: 350×208mm, moving range: 50×50mm, low-positioned coaxial flexible adjusting handle.
Condenser
72mm Extreme long work distance condenser, NA0.3, with iris diaphragm, 6V 30W halogen lamp house, filter jack.
Illumination
Phase-contrast slide makes it easy to change between 10X, 20X, 40X phase contrast and bright field observation.
6V 30W Osram halogen lamp
External power, wide voltage (100V~240V)
Fuse tube: 250V/3.15A Φ5×20
Filter
Blue filter (Φ34mm)
Green filter (Φ34mm)
Yellow filter (Φ34mm)
C-Mount
1X
0.5X
0.25X (Fit 1/3"CCD)
Digital Camera Joint
(Please advice your digital camera model in advance)
Allen Screw Driver
Φ2mm
Φ2.5mm
Φ3mm
Package
Inner: Foam, Plastic Bag;  Outer: Carton
 Pack: 1 carton, G.W.:33.7KGS, N.W.:27.5KGS,Meas.:70*70*41.5CM
Note: ● Standard Outfit, ○ Optional




KXD900


Priser: KXD900: Kr. 19800,-

 KXD900——Smart stand with the clear imaging, easiest manipulation, steady quality,
KXD900 new inverted  biological microscope is the your coming popular success.
 It can be with the fluorescence excited with
 B, G, V, UV block, can be with the phase objectives.



Parts
Specifications
KXD900
Optical System
Infinite Plan Optical System F=200mm
Viewing Head
Interpupillary distance 52~75mm, 30°inclined, diopter adjustable.
Siedentopf trinocular head
trinocular light is split 50/50 by a high quality prism.(20/80 and 100/0 are for optional)


 Eyepiece
WF10X/20, High eye-point up to21mm.
●●
WF10X/22, High eye-point up to21mm.
○○
WF16X/13mm
○○
Reticule eyepiece: Cross WF10X/18mm
Nosepiece
Quintuple, Inward facing.
Telescope
Centering Telescope Eyepiece
Objectives
Plan Achromatic 4X/0.13  WD=12.86mm
Plan Achromatic 10X/0.25  WD=9.67mm
Plan Achromatic 20X/0.40  WD=7.97mm
Plan Achromatic 40X/0.60  WD=3.76mm
Plan Achromatic 60X/0.70  WD=2.55mm
Plan Achromatic Positive Phase-Contras 10X/0.25  WD=9.67mm
Plan Achromatic Positive Phase-Contras 20X/0.40  WD=7.97mm
Plan Achromatic Positive Phase-Contras 40X/0.60  WD=3.76mm
Plan Achromatic Negative Phase-Contrast 10X/0.25  WD=9.67mm
Plan Achromatic Negative Phase-Contrast 20X/0.40  WD=7.97mm
Plan Achromatic Negative Phase-Contrast 40X/0.60  WD=3.76mm
Stage
Fixed stage: 240×180mm
Slide Plate(Φ110mm), replaceable
Mechanical stage: 180×155mm
moving range: 80×50mm
Condenser
72mm Extreme long work distance condenser, NA0.3, with iris diaphragm, 6V 30W halogen lamp house, filter jack.
Illumination
Phase-contrast slide makes it easy to change between 10X, 20X, 40X phase contrast and bright field observation.
6V 30W Osram halogen lamp
External power, wide voltage (100V~240V)
Fuse tube: 250V/3.15A Φ5×20
Filter
Blue filter (Φ34mm)
Green filter (Φ34mm)
Yellow filter (Φ34mm)
C-Mount
1X
0.5X
0.25X (Fit 1/3"CCD)
Digital Camera Joint
(Please advice your digital camera model in advance)
Optional
B, G, V, UV Excited block, selected two.

Note: ● Standard Outfit, ○ Optional





Modell: GB-LAB I100
High Level Microscope Inverted Biological Microscope With Infinite Optical System

Kr. 18800,-
Bilde forfra                                                                Bilde fra venstre



 Introduction
GB-I100 Inverted Biological Microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design.
With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable.
It has a trinocular head, so digital camera or digital eyepiece can be add to the trinocular head to take photos and videos.








Applications

 Modell: GB-I100 Inverted microscope is used by medical and health units, universities, research institutes for  observations of micro-organisms, cells, bacteria and tissue cultivation.
  It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process.
 This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.

Specifications

Model



GB-I100

Optical System

Infinite Optical System.

Viewing Head

Trinocular Head, Inclined at 30°, Interpupillary Distance 48-75mm



Eyepiece

High-point, Extra Wide Field Eyepiece EW10×/ 22

Objective

LWD(Long Working Distance) Infinite Plan Objective

4×/ 0.1, WD 17.3mm

10×/ 0.25, WD 10mm

20×/ 0.4, WD 5.1mm

40×/ 0.6, WD 2.1mm

Infinite Plan Phase Objective

PH10×/ 0.25, WD 10 mm

PH20×/ 0.4, WD 5.1mm

PH40×/ 0.6, WD 2.1m

Nosepiece

Quintuple Nosepiece

Condenser

ELWD(Extra Long Working Distance) Condenser NA 0.3,

LWD 72mm (Without Condenser the WD can be 150mm)

Centering

Centering Telescope (Φ30mm)

Phase
Annulus

10×-20×, 40× Phase Annulus Plate (Fixed)

10×-20×, 40× Phase Annulus Plate (Adjustable)

Stage

Plain Stage 160×250mm

Glass Insert

Attachable Mechanical Stage, X-Y Coaxial Control,

Moving Rang120mm×78mm

Auxiliary Stages 70mm×180mm

Terasaki Holder

Petri Dish Holder Φ35mm

Slide Glass Holder Φ54mm

Petri Dish Holder Φ90mm



Focusing

Coaxial Coarse and Fine Adjustment,

Fine Division 0.002mm,

Coarse Stroke 37.7mm per Rotation,

Fine Stroke 0.2mm per Rotation,

Moving Range up 8mm, down 3mm

Illumination

Halogen Lamp 6V/30W

Filter

Blue, Green and Frosted filters, Diameter 45mm,

Accessories

Photo Attachment

Video Adapter with C Mount

Inverted Fluorescent Attachment FI-100

Dimension& G.W.

46.5cm*39.5cm*64cm, 16kg

Pack: 1 carton, G.W.:33.7KGS, N.W.:27.5KGS,Meas.:70*70*41.5CM
Note: ● Standard Outfit, ○ Optional

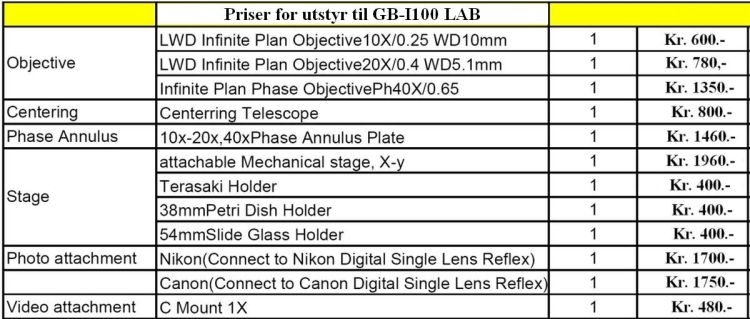

OBS: Prisene forutsetter kjøp samtidig med mikroskopet




BS2092

Kr. 18800,-   Inkl. MVA

 BS2092
 Inverted Biological Microscope is a high level microscope which is specially designed for medical and health units, universities, research institutes to observe cultured living cells. It adopts an Infinite optical system, reasonable structure and ergonomic design. With an innovative optical and structure design idea, excellent optical performance and easy to operate system, this inverted biological microscope makes your works enjoyable.


Features

1. Excellent optical function with infinite optical system.

2. DSLR(Digital Single Lens Reflex) and microscope digital camera can be used together for image and video capture.

3. Innovative stand structure, sharp image display, convenient and special for viewing incubating cell tissue.

4. With LWD Infinite Plan Objective, Making Viewing Field Flatter and Brighter, Contrast Sharper, Living Cell Observing easier.

5. Advanced and Reliable Mechanical Stage with Knob Height and Tightness Adjustable.

6. With pre-centerable Phase Annulus, Available to Observe Low Contrast or Transparent Specimens



Applications

 Modell: BS2092 Inverted microscope is used by medical and health units, universities, research institutes for  observations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous observation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.







Model



Modell: BS-2092

Optical System

Infinite Optical System

Viewing Head

Seidentopf Trinocular Viewing Head,

Inclined at 45°, 360° Rotatable,

 Interpupillary Distance 48-75mm

Eyepiece

Wide Field Eyepiece WF10×/ 22,

Eyepiece Tube Diameter 30mm

Wide Field Eyepiece WF15×/ 16

Wide Field Eyepiece WF20×/ 12

Objective

LWD(Long Working Distance) Infinite

Plan Achromatic Objective 4×/ 0.1,WD 22mm

LWD(Long Working Distance) Infinite Plan

Achromatic Phase Objective

10×/ 0.25, WD 6mm

20×/ 0.4, WD 3.1mm

40×/ 0.55, WD 2.2mm

Lamp House Adjustment Objective

Nosepiece

Backward Quintuple Nosepiece

Condenser

ELWD(Extra Long Working Distance) Condenser NA 0.3,

LWD 72mm (Without Condenser the WD is 150mm)

Centering Telescope

Centering Telescope (Φ30mm)

Phase Annulus

10×-20×, 40× Phase Annulus Plate(Fixed)

10×-20×, 40× Phase Annulus Plate(Adjustable)

Stage

Plain Stage 160×250mm

Glass Insert

Attachable Mechanical Stage, X,Y Coaxial Control,

Moving Rang120mm×78mm

Auxiliary Stages 70mm×180mm

Terasaki Holder

Petri Dish Holder Φ35mm

Slide Glass Holder Φ54mm

Petri Dish Holder Φ90mm

Focusing

Coaxial Coarse and Fine Adjustment,

Fine Division 0.002mm,

Coarse Stroke 37.7mm per Rotation,

Fine Stroke 0.2mm per Rotation,

Moving Range up 8mm, down 3mm

Illumination

Halogen Lamp 6V/30W, Brightness Adjustable

Filter

Blue, Green and Frosted Glass Filter, Diameter 45mm

Accessories

Photo tube Attachment(used to connect microscope adaptor and camera)

C Mount(Used to directly connect to a digital camera)

Epi-Fluorescent Attachment

Dimension& G.W.

46.5cm*39.5cm*64cm, 18kg

Note: ● Standard Outfit, ○ Optional





GB-SD5000X leveres både med og uten C-mountport

Pris uten C-mount: Kr. 21500,-   Med C-mountport:: Kr. 21800,-



 SD5000X Clear imaging, easiest manipulation, jarless framework, flexible upgrade, steady    quality,

 Excellent universal infinity independent plan achromatic optical system provides you with a high  quality imaging.
 SD5000X inverted biological microscope provides a flexible upgrade path to meet your applications for observations of phase contrast, fluorescence, polarization, digital and photographing easily, and also can work with heat stage,
 The adapter can connect various kinds of camera and digital observe device.
 72mm ultra-long working distance condenser provides enough space for culture dish.
 Ergonomic machine design can make you work easily for a long time.
 Powerful upgrade space make multifunction easily be got.




GB-403-serien levers i 4 modeller:
Med og uten kameraport og med fluorescence

SE SPESIFIKASJON NEDENFOR.


403T: Kr. 16800,-
403AT: Kr. 17300.-
403Y (Fluorescence): Kr. 28900.-
Se Spesifikasjon

Standard Specifications:

1) Viewing Head: Compensation Trinocular Head,Inclined at 45°,Interpupillary distance 50-75mm
2) Eyepieces: Extra Wide Field Eyepiece WF10X/22,Centering telescope
3) Objectives: Longe working distance plan achromatic objectives 4X ,40X(S)
4) Long working distance: Plan phase contrast objective 10X , 20X
5) Nosepiece: Quadruple Nosepiece
6) Stage: Double layer Mechanical Stage , Size:242X172mm
     Moving range75X50mm,central stage:
Φ
110mm
7) Focus:  Coaxial Coarse and fine Adjustment with rack&pinion mechanism ,
    fine focusing scale value 0.002mm,with tension adjustment.
8) Condenser: Abbe N.A.=0.3 Condenser ,long working distance up to 75mm
9) Sliding plate: Center of phase contrast ring plate adjustable
10) Filters: Blue ,green ,yellow and frosted glass
11) Checking tool: 0.01mm micrometer
12) Illumination: Input AC2201/110V 12V/30W Halogen lamp ,Brightness adjustable



Biological Fluorescent Micorsocpe :

403Y inverted fluorescent microscope is composed of inverted microscope and Epi-fluorescent microscope. The inverted microscope has the feature to observe the specimen in Culture flask and Petri dish. Epi-fluorescent device applies to the fluorescent microscopy.
It is equipped with long wording distance plan achromatic objectives, wide field eyepiece, binocular observation head, phase contrast kit and phase contrast objectives. The transparent alive objects can be observed without dyeing.
Epi-fluorescent microscope adopts to Epi-illumination excitation to make fluorescent image clear. Long working distance condenser can contain higher culture dish and specimen.
This equipment is specially suitable for micro research of living cells
university, medical treatment, epidemic prevention department and farming & stock raising,etc.

Epi-fluorescent attachment:
1) Epi-fluorescent light: Blue ,and Green exciting light filter system,ordinary light system
2) Lamp: 100W HBO Ultra high pressure voltage spherical mecury lamp
3) Protection barrier: Barrier to resist the ultraviolet light
4) Power supplier: AC220V/110V interchangeable ,digital play
5) Objective: Fluorescent free objectives 4X 10X 40X(S) 100X(S.OIL)
6) Immersion oil: Fluorescence free oil.

Optional accessories: Ultraviolet and Violet excitation system.





Spesifikasjon alle 403 modeller:

Model

403

403T

403A

403AT

Viewing head

Compensation free Binocular Head .Inclined at 4 5 °             ( 50mm -75mm )







Compensation Free Trinocular Head .Inclined at 45 °           ( 50mm -75mm )





Eyepiece

WF10X/ 20mm





WF10X/ 23mm





WF10X/ 18mm with Cross graduation of 0.1mm scale

Objective

Long working distance plan-objective

LWDPL4X/0.1W.D .25mm





LWDPL10X/0.25W.D .11mm

LWDPL20X/0.4W.D .8mm

LWDPL40X/0.6W.D. 3.8mm

Long working  Distance infinity plan-objective

LWDPL4X/0.1W.D .25mm





LWDPL10X/0.25W.D .12mm

LWDPL20X/0.4W.D .10mm

LWDPL40X/0.6W.D .7mm

Long working distance phase contrast objective

LWDPL10X

LWDPL20X

LWDPL40X

Stage

Double layers mechanical stage

Stage size: 242mmx 172mm

Central stage: Φ110mm

Moving range: 75mm × 50mm

Condenser

N.A0.3Abbe condenser W.D .75mm

Focusing

Coaxial coarse&fine focusing adjustment with rack and pinion mechanism Fine focusing scale Value 0.002mm

Phase contrast sliding plate

Center of phase contrast ring plate adjustable

Centering telescope

Centering telescope

Filter

Blue, green, yellow and frosted glass

Light source

Halogen bulb12V/30W

Adjustable brightness

Fluorescence attachment

B. G Wave band ,220V(110V)/100W Mercury lamp

Photograph attachment

Photograph connecting tube, adapter with MD or PK mount ,4X photograph eyepiece

Digital Eyepiece

1.3 or 3.0Mega pixels CMOS Digital eyepiece

                         standard outfit.        ○ optional parts.




GB-DS2000  Rimelig inverte biologiske mikroskop med kameraport


Kr. 16500,-  Inkl. MVA



                                   Inverted Biological Microscope: GB-DS2000X
                                                             Infinite optical system
1) Viewing Head: Conpensation Trinocular Head,Inclined at30°,Interpupillary distance 52-75mm
2) Eyepieces: High-point ,Extra Wide Field Eyepiece EWF10X/20
3) Objectives: LWD Infinite Plan Achromatic objectives 10X 20X 40X(S),phase objective20X
4) Phase Annulus: fixed style20X Phase annulus Plate
5) Nosepiece: Quintuple Nosepiece
6) Condenser: ELWD Condenser NA0.3,LWD72mm
7) Stage: Fixed Plain stage 240mmX180mm,XY directionmoving range80mmX50mm
8) Insert round plate
110mm,Right hand control,
9) Focus: Coaxial Coarse and fine Adjustment,coarse moving range :14mm,fine focus division     0.001mm
10) Filters :
34mm Blue ,green,and yellow glass.
11) Illumination: AC 220/110V,6V/30W Halogen lamp ,high bright aspheric collect Brightness
adjustable
