Rimelige biologiske med kameraport

Alle priser eks.MVA

XS100-serien  4 modeller:

Pris: 101: Kr.2700,-   102: Kr. 2900,- 103: Kr. 3300,-  104: Kr. 3500,-

Spesifikasjon XS-100 serien

Specification
XS-101
XS-102
XS-103
XS-104
Body

●
●
●
●
Viewing Head
Monocular
●
●
●
●
Eyepiece
5X
●
●
●
●

10X
●
●
●
●

12.5X
 ●

 ●


16X

●

●
Objective
4X
●
●



10X
●
●
●
●

40X(S)
●
●
●
●

100X(S,O)


●
●
Condenser
Abbe NA=1.2


●
●
Power
Reflect
●
●
●
●
Filter
Blue


●
●
Stage Clip



●
●
Insert Power



○
○
Immersion



●
●





XS300-serien.  5 modeller


Priser: 301: Kr. 3100,-   302: Kr. 3200,-   303: Kr. 3700,-   304: Kr. 3700,-    305: Kr. 4400,-

Spesifikasjon
Specification
XS-301
XS-302
XS-303
XS-304
XS-305
Viewing Head
Monocular head, Inclined at 45 º, Rotatable 360º
●
●
●
●

Sliding binocular head, Inclined at 45 º, Rotatable 360º




 ●
Eyepiece
WF10X/18mm
●
●
●
●
●
WF16X/15mm
○
○
○
○
○
WF20X/12.5mm
○
○
○
○
○
Objective
Achromatic 4X,10X,40X(S)
●
●
●


Achromatic 4X,10X,40X(S),100X(S, O)



      ●
 ●
Stage
Plain stage with slide clips,
Simple stage size:120×110mm
●
●
●
●
●
Condenser
NA=0.65 Single lens with Disc Diaphragm
●
●



NA=0.65 Condenser with iris diaphragm


●


Abbe NA=1.25 Condenser with iris diaphragm and filter



 ●
 ●
Focusing Adjustment
Separate coarse and fine focus adjustment
●
●
●
●
●
Illumination
 Plan-concave mirror
●




20W incandescent

●
●
●
●
Optional
20X 60X(S)
○
○
○
○
○
LED light
○
○
○
○
○





XS400-serien:  7  modeller

Priser:   401  Kr. 2800,-                                        402  Kr.3000,-

PRIS        403  Kr. 4000,-                                 404  Kr.  4000.-

Priser     405 Kr. 4000,-          406  Kr,  4900,-            407:   Kr. 5600,-

 Spesifikasjon

Specification

XS 401

XS

402

XS 403

XS 404

XS 405

XS 406

XS 407

Optical System

Finite Optical System

●

●

●

●

●

●

●

Viewing Head

Monocular inclined at 45°

●













Monocular inclined at 45°, 360° Rotatable



●





●





Siedentopf binocular head, Inclined at 30° (55~75mm)





●





●



Siedentopf trinocular head, Inclined at 30° (55~75mm)







●





●

Eyepiece

WF10X/18mm

●

●

●

●

●

●

●

Nosepiece

Triple, outward

●

●











Quadruple, inward





●

●

●

●

●

Objective

 Achromatic 4X, 10X, 40X(S)

●

●











 Achromatic 4X, 10X, 40X(S), 100X(S,O)





●

●

●

●

●

Stage

Simply stage: 90X90mm

●

●











Stage size: 120×125mm

Mechanical stage

Moving range: 60×30mm





●

●







Double layers stage size: 130×125mm

Mechanical stage

Moving range: 70×30mm













●



●



●

Condenser

Simply Condenser with disc

●

●











NA=1.25Abbe Condenser with iris diaphragm and filter





●

●



●



●



●

Focusing

Coarse focusing adjustment

●













Separated coarse & fine focusing adjustment





●

●







Coaxal coarse and fine focusing adjustment





●











●

●

●



Illumination

Incandescent Lamp 110/220V, 20W

●

●











Halogen bulb 6V 20W, AC 220V/110V

Adjustable light source





●

●



●



●



●

Optinal

Accessory

Eyepiece: WF16X, WF20X, P16X

Objective: 20X, 60X(S)

Semi-plan or Plan-achromatic obejctives

Reflective Mirror, Demonstration (Teaching) Head

CCD Adapter

Seidentopf binocular & trinocular head (48mm~75mm)

LED illumination

Fluorescent lamp 220V 5W or 110V 5W



XS600-serien   3 modeller

Priser:    60M: Kr. 4400,-     60B:  Kr. 5700,-     60T: Kr. 5900,-



Specification
XS-60M
XS-60B
XS-60T
Viewing head
Monocular Head. Inclined at 45 °
●


Siedentopf Binocular Head. Inclined at 30° ( 55mm -75mm )

●

Siedentopf Trinocular Head. Inclined at 30° ( 55mm -75mm )


●
Eyepiece
WF10X/18mm
●
●
●
Objective
Achromatic objective: 4X ,10X ,40X (S),100X (S,O)
●
●
●
Stage
Double layers mechanical stage
●
●
●
Stage size: 140mm × 140mm
●
●
●
Moving range: 75mm × 50mm
●
●
●
Condenser
N.A=1.25 Abbe condenser with iris diaphragm and filter
●
●
●
Focusing
Coaxial coarse & fine focusing adjustment with rack and pinion
mechanism fine focusing scale Value 0.002mm
●
●
●
Collector
High brightness collector and can be inter converted with Kohler
illumination
●
●
●
Illumination
Halogen tungsten bulb 6V/30W.AC 85V-230V
●
●
●
Adjustable brightness
Optional
Eyepieces: WF16x, WF20x,

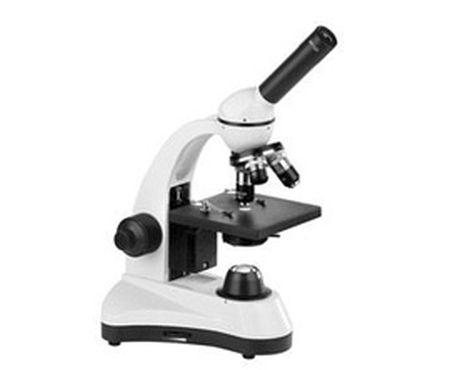

XS70-serien    2 modeller

Pris:    XS-70A:  Kr.  3600,-           XS-70B:  Kr. 4400,-
Spesifikasjon

    Specification
    XS-70A
    XS-70M
    Viewing head Monocular Head. Inclined at 45 °
    ●
    ●
    Eyepiece WF10X/18mm
    ●
    ●
    Nosepiece Triple, outward
    ●

    Quadruple, outward

    ●
    Objective Achromatic objective: 4X ,10X ,40X (S)
    ●

    1

    Achromatic objective: 4X ,10X ,40X(S), 100X(S, O)

    1
    ●
    Stage Single layer mechanical stage
    ●

    Stage size: 120mm × 120mm
    ●


    Double layers mechanical stage

    Stage size: 125X115mm

    Moving range: 70X30mm

    ●
    Condenser N.A=1.25 Abbe condenser with iris diaphragm

    ●
    Five iris disc
    ●

    Focusing

    Coaxial coarse & fine focusing adjustment with rack and pinion

    mechanism fine focusing scale Value 0.04mm
    ●
    ●
    Collector High brightness collector
    ●
    ●
    Illumination Halogen tungsten bulb 6V/20W.AC 85V-230V
    ○
    ○
    LED lamp 12V/5W
    ●
    ●
    LED lamp with the battery
    ○
    ○
    Adjustable brightness
    ●
    ●
    Optional Eyepieces: WF16X/11mm,
    ○
    ○

    Volumn: 27.5x24x43.5CM   Gross: 3.8KGS   Net: 3.2KGS



XJS100-serien med kryssbord. Med og uten kameraport


Pris eks MVA
XJS101 Kr. 4.900,-   102: Kr. 5800,-  103:  Kr. 6400,-  104 med kameraport: Kr.7200,-

XJS100 series biological microscope

Super LED illumination greatly extending the life of the illumination system.
New anti-mold, damp-proof optical system is adopted to meet different changing environments.
High bright, non-spherical illumination system.
New digital camera system expends the observing ways.
No overheating problems in the base. Long life-span LED lamp removes the trouble
of replacing light bulbs frequently.
Optional build in high-capacity rechargeable battery provides 50 hours working without power supply.

Specification
XJS101
XJS102
XJS103
XJS104
Optical System
Finity Optical System
●
●
●
●


Viewing Head
Mono Head ,Inclined at 30°,Rotatable 360
●

Siedentopf Binocular Head,
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50~75mm


●

●

Siedentopf trinocular Head,
Inclined 30°,Rotatable 360°,
Interpupilary Distance 50~75mm


●
Eyepiece
WF10X/18 mm
●
●
●
●



Objective
Achromatic 4X/0.10  W.D.=13mm
●
●
　
○　
Achromatic 10X/0.25 W.D.=6.3mm
●
●
　
○　
Achromatic 40X/0.65 (S) W.D.=0.44mm
●
●
　
○　
Achromatic 100X/1.25 (S,Oil) W.D.=0.3mm
●
●
　
○
Plan Achromatic 4X/0.10 W.D.=16mm


●
●
Plan Achromatic 10X/0.25 W.D.=2mm


●
●
Plan Achromatic 40X/0.65 (S) W.D.=0.66mm


●
●
Plan Achromatic 100X/1.25 (S,Oil) W.D.=0.42mm


●
●
Nosepiece
Quadruple, outward
●
●
●
●
Stage
Stage Size: 115×125mm
Moving range: 50×70mm
●
●
●
●
Dark Field Ring Available for 4X-40X
○
○
○
○
Condenser
Abbe N.A. 1.25 with Iris Diaphragm
●
●
●
●
Illumination
Incandescent Lamp 110V/220V, 20W
Spare Lamp: 1pc Built In Blue Filter
　
　
　
　
Halogen Lamp   6V 20W
Wide Voltage: 80V~265V
Spare Lamp: 1pc Built In Blue Filter
○
○
○
○
3W LED Illumination or 0.3W Recharge
●
●
●
●
Fuse
Spare Fuse: 2pcs
●
●
●
●

Pack: 1 carton, G.W.:6.5KGS, N.W.:5.5KGS,Meas.:33.7*24.2*41.7CM


XJS700T med kameraport

Pris XJS700T:  Kr. 6.100,-

 Teknisk spesifikasjon XJS70T

Specification
 XJS700B
XJS700T
Optical System
Finity optical System
●
●
Viewing head
Sliding Binocular Head. Inclined at 45° ( 52mm -74mm )
●

Sliding Trinocular Head. Inclined at 45° ( 52mm -74mm )

●
Eyepiece
WF10x/20mm
●
●
Objective
Achromatic objective: 4X ,10X ,40X (S),100X (S)Oil
●
●
Stage
Double layers mechanical stage
●
●
Stage size: 140mm × 140mm
Moving range: 75mm × 50mm
Condenser
N.A=1.25 Abbe condenser with iris diaphragm and filter
●
●
Focusing
Coaxial coarse & fine focusing adjustment with rack and pinion
mechanism Fine focusing scale Value 0.002mm
●
●
Collector
High brightness light collector
●
●
Illumination
Halogen tungsten bulb 6V/30W.AC 85V-230V
●
●
Adjustable brightness
Optional
Eyepieces:
WF16x & WF20x

Vekt: 10 KG   Mål:  35X29X46MM

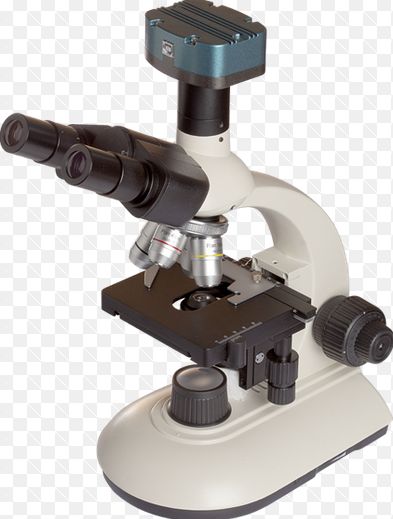

XS60T med kameraport


Pris XS-60T: Kr. 5000.-



Specification
XS-60M
XS-60B
XS-60T
Viewing head
Monocular Head. Inclined at 45 °
●


Siedentopf Binocular Head. Inclined at 30° ( 55mm -75mm )

●

Siedentopf Trinocular Head. Inclined at 30° ( 55mm -75mm )


●
Eyepiece
WF10X/18mm
●
●
●
Objective
Achromatic objective: 4X ,10X ,40X (S),100X (S,O)
●
●
●
Stage
Double layers mechanical stage
●
●
●
Stage size: 140mm × 140mm
●
●
●
Moving range: 75mm × 50mm
●
●
●
Condenser
N.A=1.25 Abbe condenser with iris diaphragm and filter
●
●
●
Focusing
Coaxial coarse & fine focusing adjustment with rack and pinion
mechanism fine focusing scale Value 0.002mm
●
●
●
Collector
High brightness collector and can be inter converted with Kohler
illumination
●
●
●
Illumination
Halogen tungsten bulb 6V/30W.AC 85V-230V
●
●
●
Adjustable brightness
Optional
Eyepieces: WF16x, WF20x,








GB910T med Kameraport

Pris eks. MVA:  Kr. 6.200,-
