6MP TrueCrome med eller uten PC



6MP True Crome HDMI
Med High speed dark field video


Tar foto i 6MP og video i Full HD.  For PC & 11.6' Skjerm

Pris eks. MVA  TCIIS:   Kr. 9900,-

Kameret kommuniserer også med en skjerm via HDMI

Pris skjerm eks MVA:  Kr. 3800,-
Les mer om skjermen   her

Teknisk Spesifikasjon og pris for 3 modeller:

Pris eks. MVA:  TCII:  74400.-    TCIIS Kr. 9900.-   HD Lite:  Kr. 5800,-



The built-in measurement function
With built-in critical dimensioning functionality, the TruechromellS is not only a superb imaging camera, but also a powerful metrology tool. This greatly extends the application areas of the Truechrome camera. The metrology functions include calibration, scalebar and line measurement.

1080p 30fps Full Frame Rates
Guaranteed 30 fps at 1080p, TrueChrome IIS presents a perfect combination of
outstanding resolution and frame rate, which allows the user to smoothly manipulate
live images without any monitor lag.


HDMI FL imaging Capability
Taking advantage of the ultra-high signal to noise ratio sensor, TrueChrome IIS allows you to set up to 10 seconds exposure time. The incredibly efficient 3D noise reduction performance delivers finest detailed images for low light fluorescence.



Built- in Mouse Control Camera
The significant innovation of TrueChrome IIS is embedding the application software inside the camera. The user can control the camera with just a mouse. There is no need for a PC.

 Superb Smart Camera
TrueChrome IIS automatically analyzes the acquired images andoptimizes the white balance, exposure time and saturation, to present perfect images. Whatever for bright field bio imaging or dark field birefringent crystal imaging, TrueChrome IISdelivers ideal images, barely needing any parameter adjustment.

Exposure Setting
For the first time, an HDMI camera is equipped with complete exposure and gain settings. It allows to exposure settings from 1ms to up to 10 seconds and 20 levels of gain adjustment. Compared with 1st generation TrueChrome where only auto exposure was available, the ease of use has been significantly improved and moreover, the sensitivity is 300 times higher.

 3D Noise Reduction
For the first time, an HDMI camera is equipped with complete exposure and gain settings. It allows to exposure settings from 1ms to up to 10 seconds and 20 levels of gain adjustment. Compared with 1st generation TrueChrome where only auto exposure was available, the ease of use has been significantly improved and moreover, the sensitivity is 300 times higher.

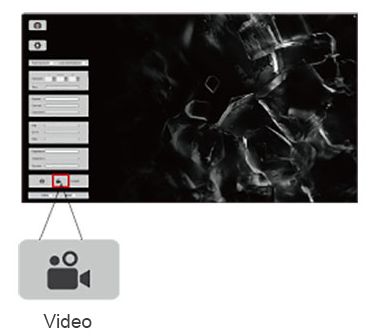

 1080P Video Recording
Just click on the button to start recording 1080P videos at 30fps. The recorded video files will be saved to the high speed SD card directly. It is also allows playback the videos in the SD card directly.

Get more Details with ROI Magnification Function
A series of image operation buttons on the right side of the screen allows the image to be flipped, rotate a Region of Interest (ROI) to be selected. The ROI function can help to get more image details through magnification.

 Image Comparison Function
The image comparison function is available in the setting menu. An image can be chosen to compare with the live image and even movedaround or have a ROI selected.



 The FPGA dual-core processor
TrueChrome IIS adopts innovative FPGA dual-core processor, FPGA1 high-definition image quality processor and FPGA2 image output controller, to ensure high speed high quality images.



Last ned  TrueChrome II Om Softwaren.pdf   her

Last ned Om kalibrering og måling   her
