2D / 3D USB-Videomikroskop



Hi-Power

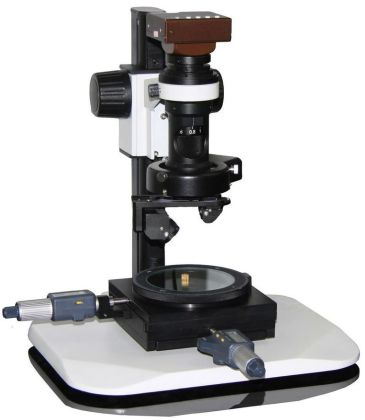

3DM-02 Microscope features the quality
optical system, low distortion, high resolution,
flat and large field of view, high depth of field
and superior parfocality.

Kr 24800,-


  HT-108
Hvordan det virker

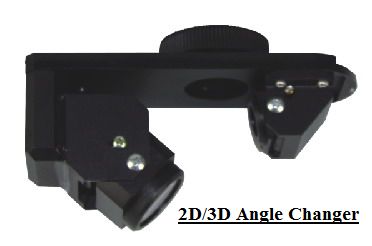

The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional.
The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.
The 3D 36 degree rotary observation lens can achieve  95mm (Max) working distance,which is the highest level in the world so far.
Digital and Analog video systems can meet the different users' demands.The 3DM-02 Microscope can be widely used in micro-electronics,
precision electronic inspection and PCB solder testing industries.

Large field of view
Low  distortion and high resolution,
Flat and high depth of field (equal or more than 6mm)
Auto-focus for different digital and analog camera
Compact, practical and cost-effective

 HT-108 Zoom Microscope can be widely used in machine version, semi-conductor and micro-electronics inspection and solder testing industry.

The Zoom lens is designed with high resolution and clear image.

When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are
at 0.3X, 0.5X,1X, 1.5X, 2.2X.

By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired.





USB Digital Microscope Spesifications:



Zoom range 0,3-2,2x

Standard objective lens and coupler : 1x

Total Optical Magnification: 7x-300x(17,,CD)

Field of View: 3.5mm-50mm

Working Distance: 46mm-95mm, 95mm is standard working distance.

Optional Objective Lenses: 0.5X, 0.8X and 2.0X(no work with 2D/ 3D Rotary Observation lens attachment)

 Plan achromatic design, outside dia. 30mm, fo HT Series Micro Zoom Lens.





Zoom lens body OD:



                              Optical Parameter (zoom 1:7)



Objective lens

0.5X

1X

2X

N.A.

0.0058-0.041

0.012-0.08

0.014-0.1

Res.(lp/mm)

17.3-122

35.8-238

41-298

MAG.

0.16X-1.13X

0.32X-2.27X

0.65X-4.55X

D.O.F.(mm)

16.3-0.33

6-0.086

2.8-0.055

W.D.(mm)

190

95

45.6

F.O.V.(mm)

50-7

25-3.5

12.3-1.8



Rotary Observation :36 degree Angle 3D Attachment for a 1X Objective Lens (Standard)

Depth of field: 6mm

W.B: Manual

W.D: 95mm(Long working distance)

Change 2D to 3D image

Same working distance ,superior resolution

Consistent centre position



3DM- 02USB Includes:

HT-108 Zoom Microscope Body,Video Couplers: 1x
2D/3D angle lens attachment,1x objective lens
White track Stand
Digital HD System(high speed and resolution): 1/2" CMOS, 30f/s, 1.3megapixels,
cross line functions
Image Output: USB2.0 high-speed transmission interface,.supporting process image capture and measuring on a PC ,
the english interface available with VMS3.0 Measurement software as optional.

 Eksempelbilder




















HT-108

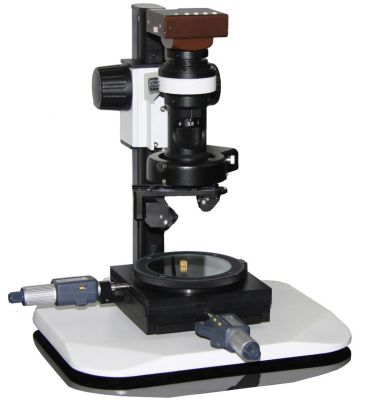

3DM-02 med dynamisk fokus
