Portabelt Borscope



Video Borescope with 2.4 Inch Screen & AV Output

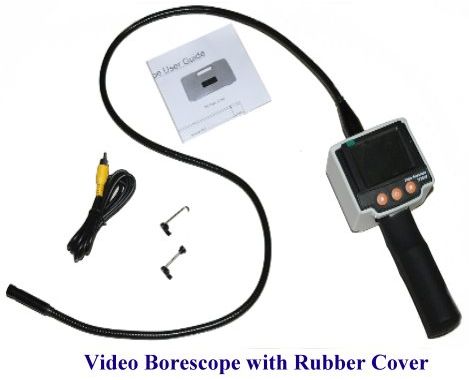

The Portable Video Borescope is a new detection equipment which comes integrated with a 2.4 TFT LCD display, super fine digital probe, a 300k water-resistant camera complete with two adjustable LEDs plus a AV connector for your TV.  It¡¯s small size, light weight design and easy to use mechanism makes it a cost-effective tool for many fields such as machinery, chemical, aviation, security and other areas.
Bestilling: admin@teknika.no










2.4  TFT resolution

320 x 234 Pixels

Lens sensor resolution

320 x 240 Pixels

Sensitivity

0.7V(Lux.sec)

Color Mosaic

RGB Bayer pattern

White comparison

Automatic

Exposure to light

Automatic

Video format

NTSC composite video

Camera illumination

2 LEDs, white

Handler end AVI port

NTSC signal out

Power by

4 X 1.5V AA

Power Consumption

200 mA

Ambient/operation temperature

0 to 45 ¡æ

TV Cable length

Approx 1.5 M

Total length of device

114.9 + - 2.0 cm

Metal tube length

88.0 + - 2.0 cm

Minimum bending radius

4.5 cm

Diameter of camera head

10.0 mm

Lens coverage

54∘

Short distance focus

3 ~ 6 cm

Weight without accessories

Approx. 370 g


























































































FEATURES:
Flexible video borescope with built in adjustable dual LED light source to illuminative object
High resolution image & optical system
Two bright LED lamps to illuminate viewed object
Glare-free close-up & wide range field of view
Flexible gooseneck retains configured shape
Shaft can be exposed to water, IP 67 water level
TV Video output for capturing images
Powered by 4 x AA batteries



Our Portable Video Borescope is a new detection equipment which comes integrated
with a 2.4 TFT LCD display, super fine digital probe, a 300k water-resistant camera
complete with two adjustable LEDs plus a AV connector for your TV.
It's small size, light weight design and easy to use mechanism makes it a cost-effective
tool for many fields such as machinery, chemical, aviation, security and other areas.
